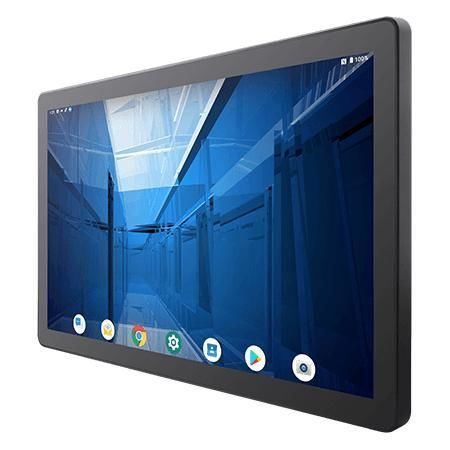

Multitouch screen panel PC W24IM3S-GCA2

PCAP capacitive touch screen24"1920 x 1080

Product overview
Winmate W24IM3S-GCA2 is a 24-inch PCAP Panel PC from the G-WIN GC-Series designed for machine control, factory automation and operator HMI. It integrates an ARM A53 Quad Core platform with fanless thermal design, an edge-to-edge true flat front with IP65 front protection, and extensive I/O for industrial integration. The unit supports Android (default) and optional Linux distributions for embedded applications.

Key features

• ARM A53 Quad Core 2.0 GHz CPU
• Fanless design and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front for easy cleaning
• Projected Capacitive (PCAP) multi-touch display
• Rich I/O: Micro USB OTG, 2 x USB 2.0, RS232/422/485, Gigabit LAN, Micro SD, Micro HDMI (optional)
• Android (default) with optional Linux (Yocto, Ubuntu Server)

Applications

• Machine control panels and HMI stations
• Factory automation and process monitoring
• Embedded operator consoles for vehicles and equipment

Design & usability
Flat bezel-less front simplifies cleaning and prevents dirt ingress. PCAP multi-touch provides accurate, multi-finger input for intuitive operator interactions. VESA and panel-mount options enable flexible installation while keeping I/O accessible.

Certifications & robustness

• Front IP65 (model dependent)
• MIL-STD-810H shock and vibration compliance
• CE and FCC certified

Specifications (high level)

• Model: W24IM3S-GCA2
• Display: 24.0 inches, 1920 x 1080, 250 nits, 3000:1 contrast, 89/89/89/89 viewing angles
• Active area: 527.04 x 296.46 mm
• CPU: ARM A53 Quad Core 2.0 GHz
• Memory: 4 GB LPDDR4
• Storage: 32 GB eMMC onboard
• OS: Android 11 (upgradeable to Android 13) default; Linux Yocto 5.15.47 (QT 5.15) / Ubuntu Server 22.04 optional
• Wireless: WLAN / Bluetooth optional
• Dimensions: 588 x 358 x 55 mm — Cut out: 388 x 280 mm
• Mounting: Panel mount and VESA mount
• Enclosure: Metal housing with plastic bezel
• Operating: 0°C to 50°C, 10% to 90% RH non-condensing — Storage: -20°C to 60°C
• Power: 12V DC via terminal block (default); 9~36V optional — Adapter: 12V/50W (accessory); 12V/84W referenced
• I/O: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG; 1 x RS232/422/485; 1 x RJ45 10/100/1000; 1 x Micro SD (max 32 GB); 1 x Micro HDMI (optional); Audio: 2 x speakers (optional)
• Accessories: Quick Start Guide (hardcopy), AC adapter, power cord, 3-pin terminal block to DC jack
