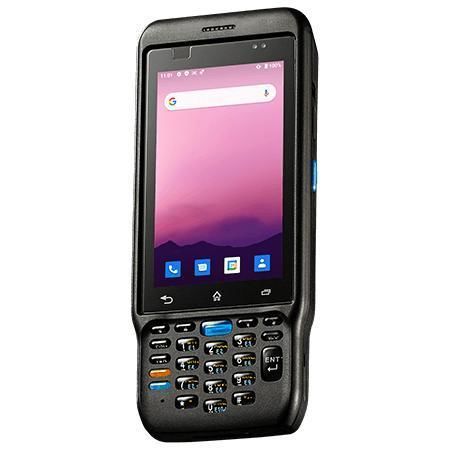

Android 10 handheld computer MC432

Qualcomm® Snapdragon™ 660GPSBluetooth

Overview
Winmate MC432 is a 4.3-inch Qualcomm® Snapdragon™ 660 rugged mobile computer designed for field service, warehouse data capture and mobile workforce operations. It provides industrial durability, stable hardware integration and long lifecycle availability. Key elements include a 4.3" 480 x 800 PCAP display, Android 10 with GMS, Snapdragon 660 up to 2.2 GHz, IP65 ingress protection, a 16 MP rear camera with autofocus and integrated support for 1D/2D barcode reading.

Key Features

• 4.3-inch 480 x 800 panel with PCAP touch
• Android 10 with GMS
• Qualcomm® Snapdragon™ 660 (Octa-Core, up to 2.2 GHz)
• IP65 waterproof and dustproof
• Rear camera: 16 MP CMOS with auto focus and LED assist
• Support for 1D/2D barcode reader (Honeywell N4603 preloaded in some SKUs)
• User-replaceable 4000 mAh battery; USB PD and QC3.0 fast charging
• Bluetooth 5.0 and Wi‑Fi 802.11ac 2x2 dual-antenna
• 23-key physical keypad with white backlight

Product Highlights

• Unparalleled Performance — Snapdragon 660 CPU with Adreno 512 GPU and sufficient RAM/storage to run industrial applications and smooth multitasking.
• Accurate Scanning — Preloadable Honeywell N4603 2D engine; ergonomic 30° tilt scanner design for comfortable, continuous scanning.
• Replaceable Battery — User-replaceable 4000 mAh battery with quick-access cover; optional hot-swap support; supports USB PD and QC3.0 fast charging.
• Seamless Connectivity — Bluetooth 5.0 enhancements and Wi‑Fi 802.11ac 2x2 dual-antenna for stable wireless coverage; optional 4G WWAN and GNSS (GPS/GLONASS).

Certifications

• IP65
• FCC
• CE

Technical specifications

• Display
  • Size: 4.3 inches
  • Resolution: 480 x 800
  • Type: Projected Capacitive Multi Touch (PCAP)
  • Panel Brightness: 650 nits
  • Bonding: Optical bonding for sunlight viewability
• System specification
  • Processor: Qualcomm® Snapdragon™ 660 (Octa-Core, up to 2.2 GHz)
  • Memory: 4 GB
  • Storage: 64 GB
  • Operating System: Android 10 (with GMS)
  • WLAN: Support (802.11ac 2x2 dual antenna)
  • Bluetooth: Support (Bluetooth 5.0)
  • WWAN: 4G (Optional)
  • GNSS: GPS / GLONASS
  • RFID: NFC (Read / Write, Peer-to-Peer)
  • Sensors: Ambient light sensor, E-compass, gyro, accelerometer, proximity sensor
• Camera
  • Rear camera: 16 MP with LED assist and autofocus
• Mechanical
  • Dimensions: 185.1 x 77 x 33.7 mm
  • Weight: 323 g
• IO Ports
  • USB: 1 x USB 3.1 Type-C OTG (supports charging)
  • Audio: 1 x built-in microphone; 1 x speaker; 1 x receiver
  • SD Card Slot: 1 x Micro SD
  • SIM Card Slot: 1 x Nano SIM
  • Indicator: 1 x LED indicator
• Environment
  • Operating humidity: 5% to 90% RH, non-condensing
  • Operating temperature: -20°C to 50°C
  • Storage temperature: -40°C to 70°C
  • Shock: MIL-STD-810G Method 516.6 Procedure I
  • Vibration: MIL-STD-810G Method 514.6 Procedure I
  • Drop: 1.8 m MIL-STD-810G (with boot) and 1.6 m MIL-STD-810G
  • IP rating: IP65
• Certification
  • CE, FCC, CB, UKCA, IC, NCC, NTC Class B, RoHS, REACH, WEEE, CP65
• Control
  • Physical keypad: 23 keys with white backlight
  • Special keys: Scan key x2, Volume key x2, Power key
• Power
  • Battery: 3.85 V, 4000 mAh (default)
  • Hotswappable function: Optional
  • Power rating: 5 V / 9 V
• Accessory
  • Included: Adapter; Data cable (Type-C); LCM protector; Hand strap
  • Optional: Spare battery; Protective boot; Cradle (1 terminal + 1 external battery)
• Barcode scanner
  • 1D/2D 30° barcode reader (Honeywell N4603 engine preloaded in some versions; supports most standard barcode formats)
