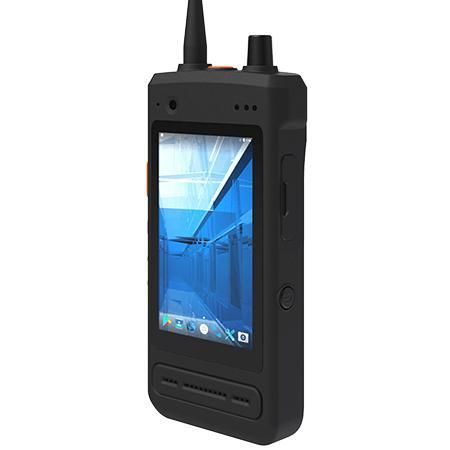

Android 11 handheld computer P400M9-DMR

ARM® Cortex A53ARM Cortex-A73ARM Octa-core

Overview
The Winmate P400M9-DMR is a 4-inch multi-mode PoC DMR radio for industrial and mission-critical field communications. It merges DMR two-way radio transceiver functions with an Android platform to provide PoC (push-to-talk over cellular), direct DMR radio operation and optional VHF/UHF support, designed for managed enterprise deployments.

Key Features

• Multi-mode PoC and DMR radio
• Octa-core Cortex-A73 + Cortex-A53 up to 2.0 GHz
• 4.0" 800 x 480 display with direct optical bonding
• Android 11 operating system
• Optional VHF/UHF radio modules and removable battery

Certifications

• IP65
• MIL-STD-810H
• CE
• FCC

Product details
Unified communications: Android-based platform provides familiar mobile UI, application support and web access while preserving dedicated PTT, SOS and talkgroup controls for radio-first workflows.

High-resolution display
4" color LCD (800 x 480) with direct optical bonding for improved sunlight readability and clear status indicators for battery, signal and group information.

Ruggedness and power
Designed to meet IP65 and MIL-STD-810H standards for dust, water and shock. Removable 7.6 V 2700 mAh battery supports extended field operations; chargers and multi-bay docks available.

Audio, connectivity and accessories
Kenwood-compatible audio connector for tactical headsets, loud front speaker, USB Type-C OTG with PD charging, GNSS, Bluetooth, optional NFC and 4G/LTE. Standard and optional accessories include antennas, universal adapter, charging docks and spare batteries.

Technical specifications

• Model: P400M9-DMR
• Brand: Winmate
• Display: 4.0 inches; 800 x 480; Projected Capacitive Multi-Touch; 550 nits; Optical Bonding
• Processor: ARM A73 x4 (2.0 GHz) + A53 x4 (2.0 GHz)
• Memory: 4 GB; Storage: 64 GB; OS: Android 11.0
• Wireless: WLAN, Bluetooth; WWAN: 4G/LTE (optional); GNSS: GPS/AGPS
• NFC: Optional (Read/Write, P2P)
• Sensors: Ambient light, e-compass, gyro, accelerometer
• Radio: DMR channel spacing 12.5 kHz; Analog 12.5/25 kHz; TX power 4 W / 0.5 W; RX sensitivity ≤ -121 dBm; AMBE vocoder; VHF 136–174 MHz or UHF 400–480 MHz
• Cameras: Front 8 MP; Rear 13 MP with LED
• Mechanical: 156.56 x 75 x 26 mm; Weight 360 g
• IO: 1 x USB Type-C OTG (PD 2.0); Kenwood audio combo connector; Micro SD slot; Micro SIM slot; Docking connector; LED indicators
• Environment: Operating -20°C to 60°C; Storage -30°C to 70°C; Humidity 5%–95% RH non-condensing
• Shock/Vibration/Drop: MIL-STD-810H (Shock, Vibration); Drop certified to 4 ft
• Battery: 7.6 V 2700 mAh removable; Operating time ≈ 8 hr
• Security/MDM: SOTI MobiControl compliant
• Accessories: Universal Adapter (EA1045SAR), UHF/VHF Antenna (V85), Battery (BTP400); Optional: MD-P400-6, DD-P400-2, MSD-16GB, UTC
