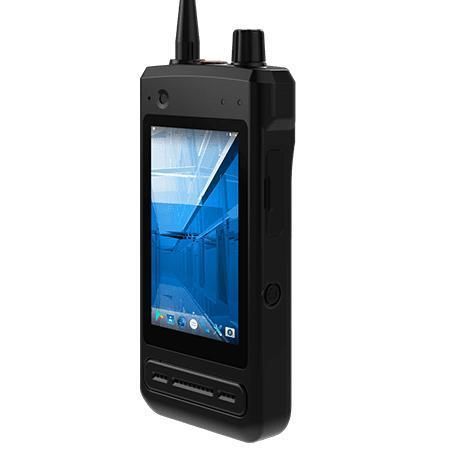

Android 11 handheld computer P400M9-DMRBH

ARM® Cortex A53ARM Cortex-A73ARM Octa-core

Product Overview
Winmate P400M9-DMRBH is a 4" Multi-mode PoC Radio with optional 1D/2D barcode reader, designed for industrial automation, embedded systems, and mission-critical applications. It combines rugged Android PDA functionality with integrated DMR radio capabilities to provide both networked PoC communication and direct DMR radio communication. Key highlights include an octa-core ARM CPU, 4" 800x480 direct-optical-bonded display, Android 11, DMR support with optional VHF/UHF radio module, and optional barcode scanner for data collection.

Key Features

• Multi-mode PoC Radios
• Cortex-A73 + Cortex-A53 (Octa-core up to 2.0 GHz)
• 4" 800 x 480 panel with direct optical bonding for sunlight viewability
• Supports Android 11
• Supports DMR and optional VHF / UHF Radio
• Optional 1D/2D Barcode Reader for data collection

Communications without barriers
Built around the Android platform, Winmate PoC Solutions provide an intuitive mobile-like interface, access to utilities and mobile calls, dedicated PTT and emergency buttons, a talkgroup rocker switch, and long battery life.

High-resolution LCD
The 4" color LCD (800 x 480) with direct optical bonding improves readability and sunlight viewability while showing radio status information such as battery, signal quality, time and groups.

Fast communications with wide-range networks
P400M9-DMRBH supports a variety of networks, delivering higher data rates and reduced latency for fast, flexible communications in harsh environments. The device supports WWAN (4G/LTE optional), Wi-Fi and Bluetooth in addition to DMR functionality.

Resilient and rugged
The device is IP65-rated and MIL-STD-810H certified, offering waterproof, dustproof and drop protection suitable for challenging environments. It features a powerful battery for long standby time.

Certifications

• IP65
• CE
• FCC
• TS

Accessories (selected)

• Standard: Universal Adapter (Model EA1045SAR), UHF/VHF Antenna (Model V85), Battery (Model BTP400, 7.6V 2700mAh)
• Optional: Charging Dock 6-bay (MD-P400-6), Charging Dock 2-bay (DD-P400-2), Micro SD Card (MSD-16GB), USB Type-C cable (UTC)

Caractéristiques / spécifications techniques

• Display — Size: 4.0 inches
• Display — Resolution: 480 x 800
• Display — Type: Projected Capacitive Multi-Touch
• Display — Panel Brightness: 550 nits
• Display — Contrast Ratio: 800:1
• Display — View Angles: 80,80,80,80
• Display — Bonding: Optical bonding for sunlight viewability
• Radio Transceiver — Channel Spacing: DMR: 12.5 kHz; Analog: 12.5/25 kHz
• Radio Transceiver — TX Power: 4W / 0.5W
• Radio Transceiver — RX Sensitivity: ≤ -121 dBm
• Radio Transceiver — Digital Vocoder Type: AMBE
• Radio Transceiver — Frequency Range: VHF 136–174 MHz or UHF 400–480 MHz
• System — Processor: ARM A73 x4 (2.0 GHz) + A53 x4 (2.0 GHz)
• System — Memory: 4 GB
• System — Storage: 64 GB
• System — Operating System: Android 11.0
• System — WLAN: Supported
• System — Bluetooth: Supported
• System — WWAN: 4G/LTE (optional)
• System — GNSS: GPS / A-GPS
• System — RFID: NFC (Read/Write, Peer-to-Peer) (optional)
• System — Sensors: Ambient Light Sensor, E-Compass, Gyro, Accelerometer
• Camera — Front: 8 MP
• Camera — Rear: 13 MP with LED auxiliary light, autofocus
• Mechanical — Dimensions: 156.56 x 75 x 26 mm
• Mechanical — Weight: 370 g
• IO Ports — USB: 1 x USB Type-C OTG (supports PD 2.0 charging)
• IO Ports — Audio: 1 x Kenwood audio combo connector (Mic in or Line Out), 1 x built-in mic, 1 x speaker
• IO Ports — SD Card Slot: 1 x Micro SD
• IO Ports — SIM Card Slot: 1 x Micro SIM
• IO Ports — Indicators: 1 x LED indicators (Power, Battery)
• IO Ports — Docking Connector: 1 x Docking connector
• Control — Buttons: 1 x Power Button, 3 x Function Buttons, 1 x PTT Button, 1 x SOS Button
• Power — Battery: 7.6 V, 2700 mAh Li-Poly removable battery
• Power — Battery Operating Time: 8 hr
• Power — Power Rating: 15 V
• Power — Adapter: 15 V PD adapter with USB Type-C
• Environment — Operating Humidity: 5% to 95% RH, non-condensing
• Environment — Operating Temperature: -20°C to 60°C
• Environment — Storage Temperature: -30°C to 70°C
• Environment — Shock: MIL-STD-810H Method 516.8 Procedure I
• Environment — Vibration: MIL-STD-810H Method 514.8 Procedure I
• Environment — Drop: MIL-STD-810H Method 516.8, 4 ft
• Environment — IP Rating: IP65
• Security — SOTI MobiControl compliance
• Barcode Scanner — Optional 1D/2D barcode reader
