Android 11 handheld computer P500M9

ARM® Cortex A53ARM Cortex-A73GPS

Overview

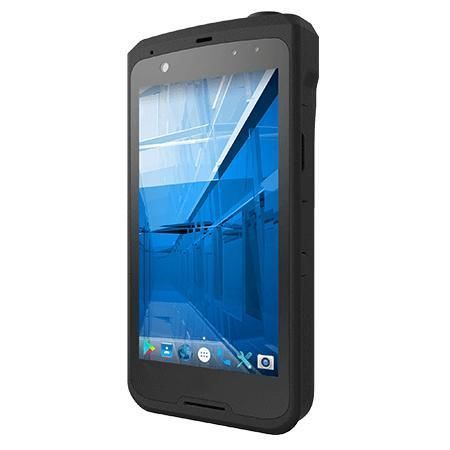

Winmate P500M9 is a 5-inch rugged Android handheld computer for field service, warehouse data capture, mobile workforce and public safety. It pairs an ARM A73 + A53 octa-core platform with IP65 protection, MIL-STD-810H compliance and modular data-capture options (1D/2D scanner, optional NFC). Designed for handheld use with a user-replaceable battery and enterprise accessories.

Key features

• 5-inch 1280 x 720 daylight-readable display with optical bonding
• ARM Cortex-A73 x4 + Cortex-A53 x4 octa-core (up to 2.0 GHz)
• Rugged: IP65 rating and MIL-STD-810H shock/vibration/drop
• Optional 1D/2D barcode scanner and optional NFC (Read/Write)
• Glove and rain touch modes; user-replaceable battery
• Modular accessories: pistol grip, multi-bay chargers, vehicle cradles

Certifications

• CE
• FCC

Display

• Size: 5.0 inch
• Resolution: 1280 x 720
• Type: Projected Capacitive Multi-Touch
• Brightness: 500 nits
• Contrast: 800:1
• Optical Bonding for sunlight viewability
• Touch modes: Hand, Gloves and Rain

System specification

• Processor: ARM A73 x4 (2.0 GHz) + A53 x4 (2.0 GHz) (octa-core)
• Memory: 4 GB RAM
• Storage: 64 GB
• OS: Android 11.0
• Wireless: Wi‑Fi, Bluetooth; WWAN: optional 4G/LTE
• GNSS: GPS / AGPS
• Sensors: Ambient light, E-compass, Gyro, Accelerometer

Camera

• Front: 8 MP
• Rear: 13 MP with LED auxiliary light and auto focus

Mechanical

• Dimensions: 155.61 x 80 x 26 mm
• Weight: 330 g

IO Ports

• 1 x USB Type-C OTG (supports PD 2.0 charging)
• Audio: 1 x audio jack; 2 x built-in microphones; 1 x speaker; 1 x receiver
• 1 x Micro SD slot; 1 x Micro SIM slot; 1 x Docking connector; LED indicators (power, battery)

Environment & ruggedness

• Operating humidity: 5% to 95% RH, non-condensing
• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Shock / Vibration / Drop: MIL-STD-810H (shock, vibration, 4 ft drop)
• IP rating: IP65

Control & buttons

• Buttons: Volume +/-, Power, 2 x function buttons

Power

• Battery: 7.6V 2700 mAh removable, user-replaceable
• Battery operating time: approx. 8 hr
• Power rating / Adapter: 15V; 15V PD adapter with USB Type-C

Security & device management

• SOTI MobiControl compliance (MDM support)

Accessories

• Standard: Universal adapter (EA1045SAR), battery (BTP400 7.6V 2700mAh)
• Optional: Micro SD, USB Type-C cable, 2-bay/6-bay battery charging docks, pistol grip, vehicle cradles

Barcode scanner

• Optional professional 1D/2D omnidirectional scan engine

Additional product highlights

• Optical bonding for improved sunlight readability
• Glove and rain modes for reliable field operation
• Modular accessory ecosystem for enterprise deployments
• Targeted for field service, warehouse, logistics, mobile workforce and public safety

Technical specifications (summary)

• Model: P500M9
• Brand: Winmate
• Display: 5.0 inch, 1280 x 720, 500 nits, optical bonding
• CPU: ARM A73 x4 + A53 x4 up to 2.0 GHz (octa-core)
• RAM / Storage: 4 GB / 64 GB
• OS: Android 11.0
• Battery: 7.6V 2700 mAh removable (approx. 8 hr)
• Ruggedness: IP65, MIL-STD-810H
• Connectivity: Wi‑Fi, BT, GPS, optional 4G/LTE, optional NFC
• Data capture: Optional 1D/2D barcode reader
