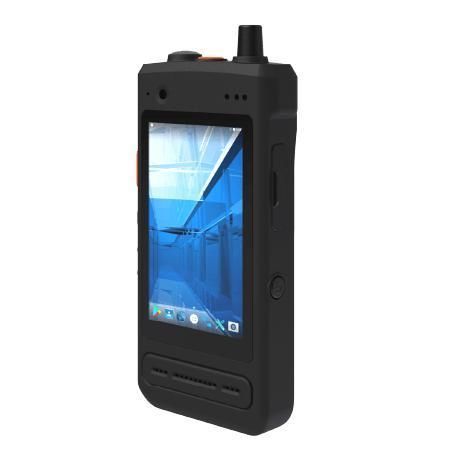

Android 11 handheld computer P400M9

ARM® Cortex A53ARM Cortex-A73GPS

Overview
Winmate P400M9 is a 4-inch rugged handheld computer for field service, warehouse data capture and mobile workforce operations. Built on an ARM A73 + A53 octa-core platform and running Android 11, it targets industrial buyers, OEMs and system integrators needing a durable, mission-capable device with long lifecycle availability.

Key Features

• PoC (Push-to-Talk over Cellular) application compatible
• Cortex-A73 + Cortex-A53 octa-core (up to 2.0 GHz)
• 4" 800 x 480 P-CAP display with direct optical bonding, 550 nits
• Android 11 operating system

Product highlights
Ergonomic one-handed design with physical keypad and programmable keys; sunlight-readable 4" projected-capacitive touchscreen with optical bonding; integrated professional 1D/2D barcode scanner; front 8 MP and rear 13 MP cameras with LED assist for proof-of-delivery and image services; certified for splash, dust, shock and drops (IP65, MIL-STD-810H).

Certifications & Ratings

• IP65
• CE
• FCC
• MIL-STD-810 series (drop, shock, vibration)

Accessories (standard & optional)
Standard accessories

• Universal Adapter (Model: EA1045SAR) — AC 100–240V input; PD Adapter output up to 20V 1.5A (30W)
• Battery (Model: BTP400, Part No: 32000000002C) — 7.6V 2700mAh Li‑Poly removable battery

Optional accessories

• Charging Dock 6-bay (Model: MD-P400-6, Part No: 98DP04A00001) — PoGo pin charging, power LEDs
• Charging Dock 2-bay (Model: DD-P400-2, Part No: 98DP04A00003)
• Micro SD Card (Model: MSD-16GB)
• USB Type-C cable (Model: UTC)

Notes
Device supports PoC solutions, some SKUs may ship with Larzio app pre-installed, and the platform is compliant with SOTI MobiControl for remote device management.

Technical specifications

• Display — Size: 4.0 inches; Resolution: 480 x 800; Type: Projected Capacitive Multi-Touch; Brightness: 550 nits; Contrast: 800:1; View angles: 80/80/80/80; Optical bonding for sunlight viewability
• Processor — ARM A73 x4 (2.0 GHz) + A53 x4 (2.0 GHz) (Octa-core)
• Memory — 4 GB
• Storage — 64 GB
• Operating System — Android 11.0
• WLAN / Bluetooth — Supported
• WWAN — 4G/LTE (optional)
• GNSS — GPS / A-GPS
• RFID / NFC — NFC (Read/Write, Peer-to-Peer) (optional)
• Sensors — Ambient light, e-compass, gyro, accelerometer
• Front Camera — 8 MP
• Rear Camera — 13 MP with LED auxiliary light (Auto Focus)
• Dimension — 156.56 x 75 x 26 mm
• Weight — 330 g
• USB Port — 1 x USB Type-C OTG (supports PD 2.0 charging)
• Audio — Kenwood audio combo connector (Mic in or Line Out), built-in mic, 1W speaker
• SD / SIM — 1 x Micro SD slot; 1 x Micro SIM slot
• Indicators / Docking — LED indicators (power, battery); docking connector
• Operating Humidity / Temperature — 5% to 95% RH non-condensing; -20°C to 60°C operating; -30°C to 70°C storage
• Durability — Shock: MIL-STD-810H Method 516.8 Procedure I; Vibration: MIL-STD-810H Method 514.8 Procedure I; Drop: MIL-STD-810H Method 516.8 (4 ft)
• IP Rating — IP65
• Battery — 7.6V 2700mAh removable; Typical operating time ~8 hr
• Power / Adapter — Power rating 15V; 15V PD adapter with USB Type-C
• Buttons / Controls — 1 x Power, 3 x Function, 1 x PTT, 1 x SOS
• Security / Management — SOTI MobiControl compliance
