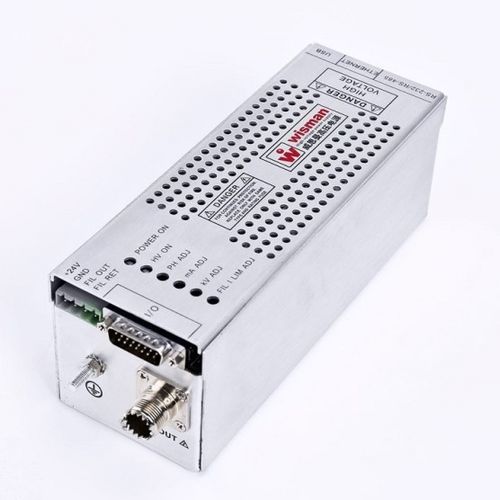

X-ray generator XN

Wisman's XN series is the smallest x-ray generator in the market today. It is 45% smaller than XRN series, the weight is 1.5kg, which output voltage ranges from10kV to 50kV and offers filament current to ground, 0~5Vdc adjustable, filament current 0.3A to 3.5A adjustable. XN series is with the function of overcurrent, overvoltage, arc and safety interlock etc and can be controlled locally and remotely, providing USB2.0, RS-232 and RS485 option. Typical applications: X-ray fluorescence meter Aluminum strip thickness measurement Aluminum plate thickness measurement Paper Film Aluminum foil thickness measurement Online element analysis X-ray fluoroscopy Particle size detection Density measurement Paper composition detection Online process control ROHS detection Thickness Printed circuit board inspection system X-ray fluorescence analysis Radiography field X-ray imaging Multi-layer PCB alignment Particle size detection Density measurement Process control X-ray spectroscopy Welding head Wire head inspection. Corresponding X-ray tubes (cathode or anode grounded): Kevex, Oxford, RTW, Superior, Varian, Trufocus and several domestic brands. SPECIFICATIONS Voltage control: local: the multi-turn potentiometer can set the output voltage from 0V to the highest voltage. Remote control: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
