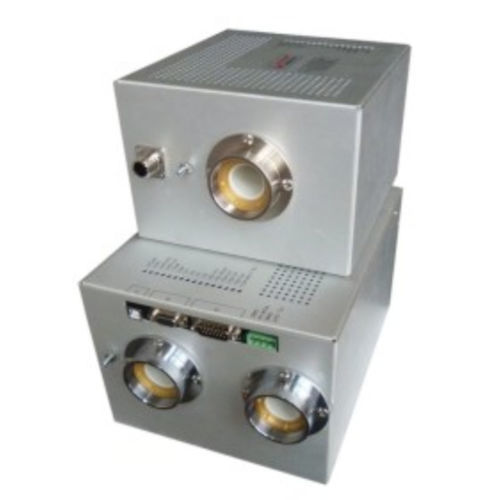

X-ray generator XRB

Wisman's XRB series of bipolar x-ray generator modules are designed for x-ray tubes manufacturers with the max output power 300W, max output voltage 140kV(±70kV). XRB's universal input, small package size and three standard digital interface options enable XRB x-ray generator to be easily integrated into x-ray analysis systems. The digital signal processor is based on the emission control circuit to provide good emission current calibration and significant stability. Wisman's XRB series x-ray generator can be controlled locally and remotely, with USB2.0, RS232 and RS485 option and overvoltage,overcurrent,arc and safety interlock function. APPLICATIONS Plastics Sorting Crystal Inspection Plating Measurement Thickness Gauging Food Inspection Mineral Analysis X-Ray Fluorescence X-Ray Diffraction SPECIFICATIONS Voltage control: Local: the multi-turn potentiometer can set the output voltage between 0V and the highest voltage. Remote: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage. Local: The multi-turn potentiometer that comes with the power supply can set the electron beam current from 0A to the highest current. Remote : The external 0 to 10V control signal can set the electron beam current from 0A to the highest current. DC filament power supply: the output current is 5A adjustable, and the voltage is 115.5V. Voltage regulation: Relative load: 0.01% (no load to rated load) Relative input: ±0.01% (input voltage change is ±10%) Current regulation: Relative load: 0.01% (no load to rated load) Relative input: ±0.01% (input voltage change ±10%).
