X-ray generator XD series

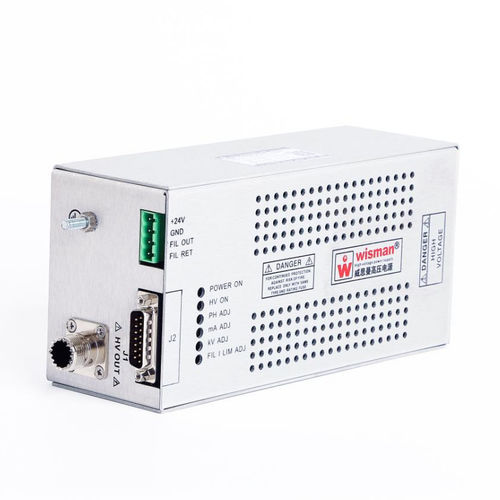

The Wisman XD series high-voltage power supply is compact in size and is designed for X-ray tubes. It features excellent adjustment performance, low ripple, and high stability. The XD series power supply outputs a positive voltage of 80KV and has a maximum power of 100W. It integrates a DC filament power supply within the internal circuit, adjustable from 0-5.5V to 0A to 3.5A. The XW series power supply has overvoltage, short-circuit protection, and safety interlock functions at the high-voltage output end. It supports local or remote remote control, or digital control, and offers optional USB2.0, RS-232, or RS-422 interfaces. Product Features: 1. DC/DC, with an output voltage of up to 80kV and a maximum output power of 100w 2. The product is small in size, being 30% smaller than XRN. 3. Optional USB 2.0, RS-232 or RS485, and network interface for digital communication 4. Available voltage outputs range from 70KV to 80KV, with the maximum voltage selectable. 5. Maximum output power: 100W. 6. Integrated adjustable filament power supply 7. Local or remote remote control, or digital control 8. Optional integrated bias is applicable to micro-spot X-ray tubes.
