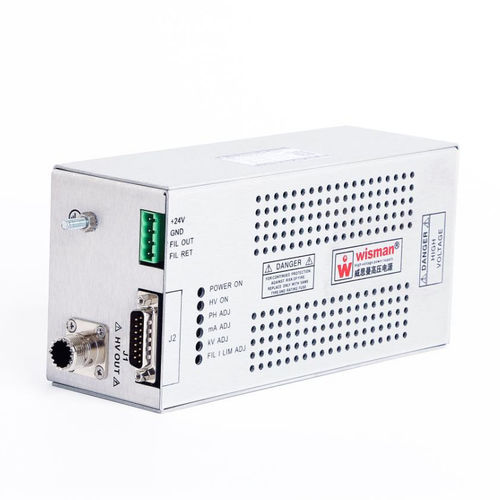

X-ray generator XW

Wisman's XW series high stability precision high voltage module is a small size x-ray generator dedicated for x-ray tube. Wisman's XW series x-ray generator outputs a positive high voltage of 10kv-70kv. XW series x-ray generator provides a direct current to the ground filament, the voltage is adjustable from 0 to 5.5Vdc, and the filament current can be adjusted between 0.3A and 3.5A.Wisman's XW series x-ray generator can be accurately measured and controlled internally, externally and by computer,with USB2.0, RS-232, RS-485 interface options. XW series x-ray generator has protections such as overvoltage, overcurrent, arcing, and safety interlock. APPLICATION: X-ray Imaging,Thickness,X-ray diffraction,X-ray Inspection,Non-destructive Testing,Micro-focus spot X-ray tube,ROHS Inspection SPECIFICATION: Voltage control: Internal：multi-turn potentiometer can set output voltage from 0V and the Maximum External remote control: external 0 to 10V control signal can adjust the output from 0V to the Maximum. Launch control: External: the internal potentiometer sets the beam current from 0 to the full current. External remote control: external 0 to 10V control signal can adjust the output from 0V to the full current. Filament power supply: Voltage regulation: Relative load: 0.01% (no load to rated load) Relative input: ±0.01% (input voltage change ±10%) Current regulation: Relative load: 0.01% (no load to rated load) Relative input: ±0.01% (input voltage change ±10%) Ripple: 0.1% p-p of the maximum rated output voltage. Environmental: working temperature: 0℃ to +50℃
