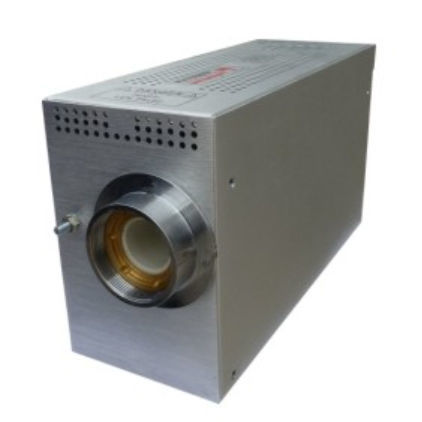

X-ray generator XFL

Wisman's XFL series, high stable, low ripple compact x-ray generator is specialized for all kinds of x-ray tubes from different manufacturers. XFL series can output negative voltage and provide floating filament voltage. Wisman's XFL series can realize local, remote and computer control, with option of RS232,RS485,USB2.0 and ET interface,XFL x-ray generator is with the function of overvoltage, overcurrent, arc and safety interlock protection . APPLICATIONS： Thickness gauge steel strip Iron strip Electroplating measurement Industrial X-ray machine, Capacitor charging, Nuclear instrument, Non-destructive detection, Portable X-ray Machine, Dental X-ray machine Online element analysis, Thickness inspection, X-ray fluoroscopy, Particle size inspection Density measurement Paper composition inspection. Plastics Sorting Crystal Inspection Plating Measurement Diamond Inspection Mineral Analysis X-Ray Fluorescence X-Ray Diffraction. SPECIFICATIONS： Voltage control: Local: the multi-turn potentiometer can set the output voltage between 0V and the highest voltage. Remote: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage. Computer control: RS-422, RS-232, USB port optional Emission current control: Local: The multi-turn potentiometer can set the electron beam current from 0A to the highest current. Remote : The external 0 to 10V control signal can set the electron beam current from 0A to the highest current. Computer control: RS-422, RS-232, USB port optional DC filament power supply:
