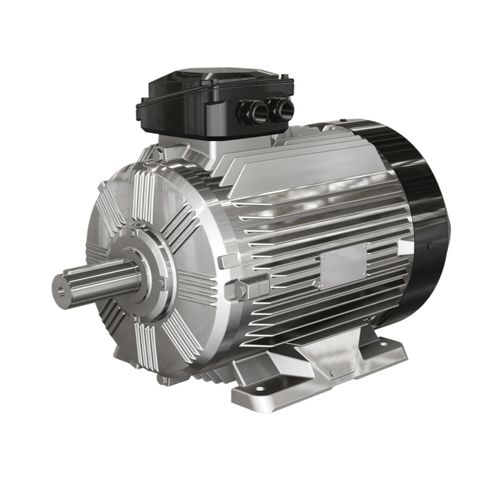

Asynchronous motor WE3 seriesthree-phasecast iron framealuminum-frame
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Configuration
- cast iron frame, aluminum-frame
- Protection class
- IP55, IP65, IP56
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 2-pole, 6-pole, 8-pole, 10-pole
- Cooling mechanism
- IC411
- Other characteristics
- low-voltage, energy-saving, high-efficiency, IEC, inverter operated
- Power
Max.: 315 kW
(428.28 hp)Min.: 0.06 kW
(0.08 hp)- Torque
Max.: 3,054 Nm
(2,252.514804 ft.lb)Min.: 2.5 Nm
(1.843905 ft.lb)- Rotational speed
Max.: 2,990 rpm
(18,786.7241 rad.min-1)Min.: 925 rpm
(5,811.9464 rad.min-1)
Description
Frame size - 56 - 355
Mounting arrangements B3, V5.V6, B5, V1.V3, B35
Voltages
200-690V line and inverter operation
Frame construction
Aluminium and Cast iron
Degree of protection
IP55, IP56, IP65, IP66
Température class
155 (F) according to 130 (B) or 180 (H) according to 155 (F)
Cooling method
IC411, IC410, IC416, IC418
Certificates
CE
The unique design of the series of motors has an optimized cooling and advanced insulation system, reliability assurance, high efficiency and energy saving, easy in maintenance and is in line with IEC energy efficiency standards.
