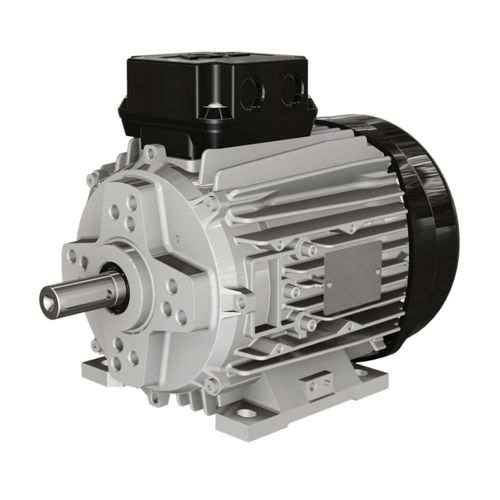

Synchronous motor M seriesthree-phase400 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, three-phase
- Voltage
- 400 V
- Configuration
- permanent magnet, cast iron frame, aluminum-frame, compact
- Protection class
- IP55, IP65, IP66, IP56
- Cooling mechanism
- IC411
- Other characteristics
- variable-speed
- Power
Min.: 0.25 kW
(0.34 hp)Max.: 100 kW
(135.96 hp)- Torque
Min.: 1.8 Nm
(1.327612 ft.lb)Max.: 73 Nm
(53.842037 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 3,000 rpm
(18,849.5559 rad.min-1)
Description
Frame size - 56 - 225
Mounting arrangements - B3, B5, B14, V6, V5, B35, V1
Efficiency class - IE4
Temperature class - 155 (F) according to 130 (B)
Cooling method - IC411
Certificates - CE
High-performance motor technology; In comparison to conventional asynchronous motors, up to two motor sizes smaller dimensions are possible, that is, wherever it is important, more compact and lighter motors can be used.
