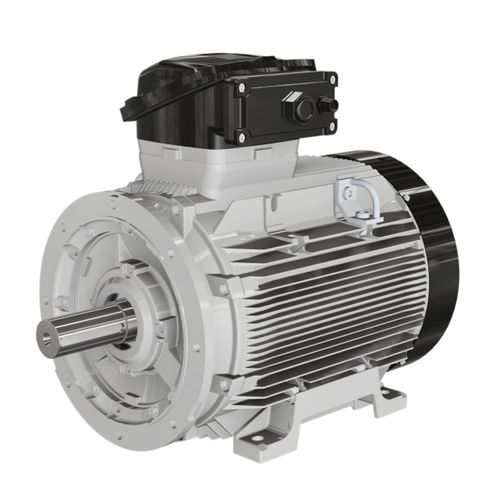

Flameproof motor W-EF seriesasynchronouscast iron frameIP55
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous
- Configuration
- cast iron frame
- Protection class
- IP55, IP65, IP56, IP66, ATEX, flameproof, for hazardous areas, IECEx
- Number of poles
- 4-pole, 8-pole, 6-pole, 2-pole
- Other characteristics
- low-voltage
- Power
Min.: 0.75 kW
(1.02 hp)Max.: 200 kW
(271.92 hp)- Torque
Min.: 3.7 Nm
(2.72898 ft.lb)Max.: 1,419 Nm
(1,046.60069 ft.lb)- Rotational speed
Min.: 690 rpm
(4,335.3979 rad.min-1)Max.: 2,980 rpm
(18,723.8922 rad.min-1)
Description
Frame size - 90 - 315
Mounting arrangments - B3, B5, V5, V6, V1, V18, B14, B35
Ex protection level -
Ex d IIB or C T4 Gb and Ex de IIB or C T4 Gb
Voltages - 220 - 690V line and inverter operation
Temperature class -
155 (F) according to 130 (B) or 180(H) according to 155 (F)
Cooling method - IC411
The Ex db / eb range of flameproof cast iron motors cover outputs from 0.37kW to 200kW in frame sizes W-EF90 to W-EF315, in 2, 4, 6, & 8 pole speeds. ATEX approved by SGS Baseefa.
