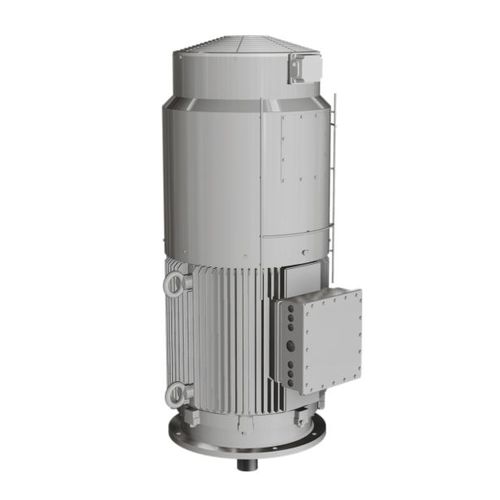

Asynchronous motor BKZ seriesthree-phaseIP55IP65
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Protection class
- IP55, IP65, IP66, IP56, IP67
- Number of poles
- 4-pole, 2-pole, 6-pole, 8-pole
- Cooling mechanism
- IC411
- Applications
- for cranes
- Other characteristics
- low-voltage
- Power
Max.: 90 kW
(122.37 hp)Min.: 0.12 kW
(0.16 hp)- Rotational speed
1,000 rpm, 1,500 rpm, 3,000 rpm
(6,283.1853 rad.min-1, 9,424.778 rad.min-1, 18,849.5559 rad.min-1)
Description
Voltages - 230, 380, 400, 415, 440, 460, 480, 500, 690V
Frequencies - 50Hz（60Hz
Duty - S1（S2, S3, S4-S9)
Speed - 3000、1500、1000, 750
Power factor - 0.7~0.9
Insulation - F insulation B temperature rise
Cooling - IC411
Greasing - Motors up to frame 160 have bearings greased for life, 180 and up have regreasing facilities
Housing -
Aluminium available up to frame 200
Cast iron from frale 112
