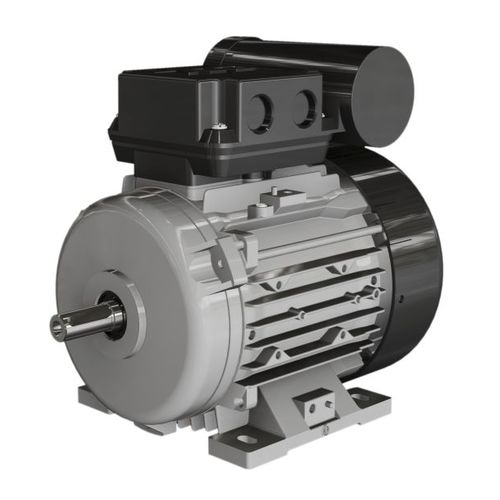

Asynchronous motor A, L, N series single-phasesquirrel cagealuminum-frame
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, single-phase
- Configuration
- squirrel cage, aluminum-frame
- Protection class
- IP55, IP65, IP66, IP56
- Efficiency classes
- IE2
- Number of poles
- 4-pole, 2-pole, 6-pole, 8-pole
- Cooling mechanism
- IC411
- Other characteristics
- low-voltage, standard
- Power
Max.: 4 kW
(5.44 hp)Min.: 0.06 kW
(0.08 hp)- Rotational speed
Max.: 3,560 rpm
(22,368.1397 rad.min-1)Min.: 600 rpm
(3,769.9112 rad.min-1)
Description
Frame size - 56 - 112
Mounting arrangments B3, V5, V6, B5, V1, V3, B35, B6, B7, B8, B30
Voltages - 115-230V
Temperature class - 155 (F) according to 130 (B) or 180 (H) according to 155 (F)
Cooling method - IC410, IC411, IC418
Certificates CE
ATB A, L and N series are ranges of surface-cooled single phase asynchronous machines with squirrel cage rotors in standard and special design.
