Thermal camera E3

digitalmechanicalinfrared

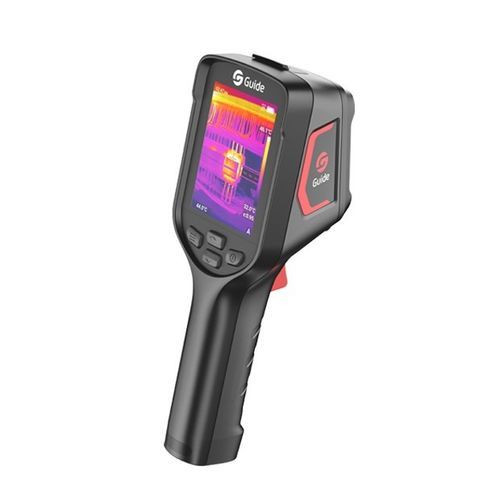

Tool-like Thermal camera EasIR Series offers high-resolution detectors (256×192 or 384×288) for precise capture of minute temperature variations. Featuring IR-Perfclear technology, it optimizes image details and reduces noise in real time, delivering exceptionally clear thermal imaging. The device is equipped with a 3.5-inch bright HD display and a 2 MP visible-light camera, supporting both synchronous display or image fusion of thermal and visible-light. Enhanced with smart capabilities including live video streaming, recording, Wi-Fi connectivity, and OTA upgrades, it significantly boosts work efficiency. - IR Resolution: 256×192@12μm - NETD: 30mK - Measurement range: -20°C~550°C - Frame rate: 30Hz/9Hz Product Features: - 3.5-inch large screen: The expansive 3.5-inch display provides a clear view of details, enabling precise control of critical information. - Real-time IR-Perfclear technology: Features IR-Perfclear real-time super resolution technology for 4x image quality enhancement. - 12-Hour Runtime: Extended 12-hour battery life meets all-day operational demands and ensures stable performance in complex working conditions. - OTA Updates: Featuring encrypted transmission and verification for secure and stable upgrades. Update with a single click, anytime, anywhere. - 2-Meter Drop Proof: Certified for 2-meter drop resistance. Unfazed by rain, high temperatures, or harsh conditions. Applications: - Mechanical & electrical - Smart Manufacturing Technical Parameters: - Detector type: VOx, 7.5 to 14μm - Infrared resolution: 256×192@12μm - Super resolution: Yes, Upgrade to 512×384 - NETD: 30mK - Frame rate: 30Hz/9Hz - Focal length: 3.2mm - Field of view: 56°×42° - IFOV: 3.75mrad - Min. object distance: 0.3m - D:S: 266:1 - Focusing mode: Focus-free - Measurement range: Support auto-switching: -20°C to 150°C, 0°C to 550°C - Measurement accuracy: ±2°C or ±2%, whichever is greater - Analyzed target: Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) - Alarm: Full screen temperature threshold alarm (image and flash) * Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you. - Imaging and optics: VOx, 7.5 to 14μm; 256×192@12μm; Super resolution upgrade to 512×384; 30mK NETD; 30Hz/9Hz frame rate; 3.2mm focal length; 56°×42° FOV; 3.75mrad IFOV; 0.3m min. object distance; 266:1 D:S; Focus-free - Measurement and analysis: -20°C to 150°C, 0°C to 550°C auto-switching; ±2°C or ±2%, whichever is greater; Center spot and three fixed areas; Full screen temperature threshold alarm
