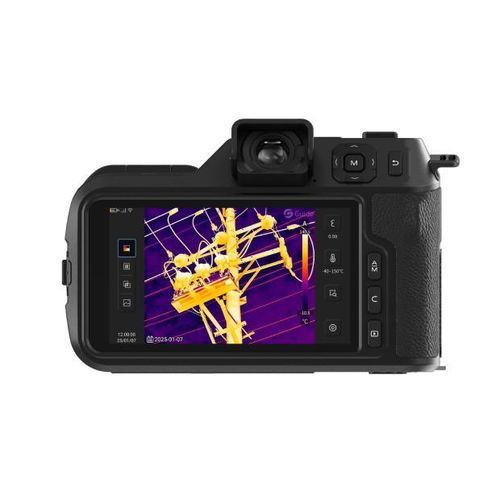

Digital imager PT850

industriallaboratorymechanical

HD High-Performance Thermal CameraPT II series Flagship Edition Megapixel Thermal Imager of Guide Sensmart incorporates a new generation of self-developed uncooled infrared focal plane detector, achieving a resolution of up to 1280×1024. Its exclusive A/M-Focus manual/automatic hybrid focusing system delivers superior image quality and enhanced operational flexibility. The PT Series has undergone comprehensive upgrades in hardware configuration, software systems, and user experience, aiming to establish a new industry benchmark.1024×768 IR resolution1-lens TwinView DFOVCharges to 90% in 1 HourUp to 2500°C Temperature RangeProduct Features:TwinView DFoV Lens: Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes—efficiently tackling diverse scenarios with unmatched versatility.50Hz High Frame Rate: 50Hz frame rate captures thermal dynamics instantly, ensuring zero missed detections in industrial inspections.90% Charge in 1 Hour: Charge to 90% in 1 hour, minimizing downtime for critical missions.2500℃ Ultra-High Temp: Covers -40°℃ to 2500℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.5 Focus Modes: 5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.PerIRVision Panoramic Stitching: AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.Applications:Mechanical & electricalSmart ManufacturingElectricalScientific ResearchTechnical Parameters:ModelPT850Imaging and opticsDetector typeVOx, 7.5 to 14μmInfrared resolution1024×768@12μmSuper resolutionYes, Upgrade to 2048×1536NETD25mKFrame rate50Hz/9HzFocal length27.7mmField of view25°×19°IFOV0.43mradMin. object distance0.3mD:S2346:1Focusing modeManual / Automatic / Touch autofocus / Continuous autofocusDigital zoom1.1x to 50xMeasurement and analysisMeasurement rangeSupport auto-switching: -40°C to 150°C, 0°C to 800°C, Optional 400°C to 2500°C (High temperature lens is required)Measurement accuracy±1°C or ±1%, whichever is greaterAnalyzed target35 in total (Spot/Line/Area)AlarmFull screen temperature threshold alarm (image, voice, color and flash)OthersCustomized physical button, NFC connection, OTA update* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.Key Specifications:Model: PT850Detector type: VOx, 7.5 to 14μmInfrared resolution: 1024×768@12μmSuper resolution: Yes, Upgrade to 2048×1536NETD: 25mKFrame rate: 50Hz/9HzFocal length: 27.7mmField of view: 25°×19°IFOV: 0.43mradMin. object distance: 0.3mD:S: 2346:1Focusing mode: Manual / Automatic / Touch autofocus / Continuous autofocusDigital zoom: 1.1x to 50xMeasurement range: -40°C to 150°C, 0°C to 800°C, Optional 400°C to 2500°C (High temperature lens required)Measurement accuracy: ±1°C or ±1%, whichever is greaterAnalyzed target: 35 in total (Spot/Line/Area)Alarm: Full screen temperature threshold alarm (image, voice, color and flash)Others: Customized physical button, NFC connection, OTA update
