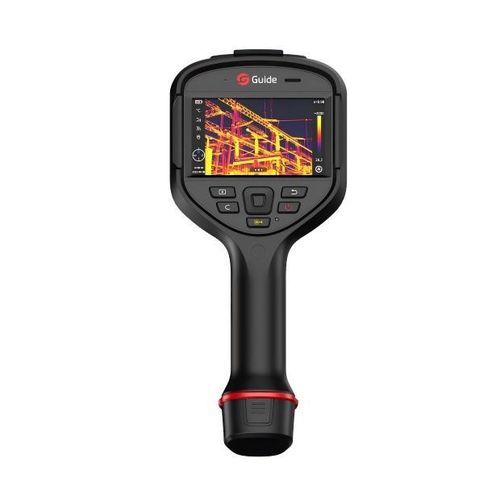

Digital camera H3

industriallaboratorymechanical

Product Overview:GUIDE H Series Enhanced -- High-Precision Hammer-Style Infrared Camera is specifically designed for industrial inspections and electrical grid maintenance. Equipped with a proprietary self-developed high-sensitivity detector (NETD <30mK, 640×480 resolution), its 50Hz high frame rate and wide temperature measurement range ensure precise capture of abnormal heating points. Equipped with a single-lens dual-FOV design, it instantly switches between wide-angle and narrow-angle views without lens changes. This enables seamless adaptation to complex scenarios, efficiently handling both long-distance inspections and close-range temperature measurements.IR Resolution: 320x240FOV: 25°+15°, 25°+45°Frame Rate: 50HzMeasurement Range: -40℃~2000℃Key Features:TwinView DFoV Lens: Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes—efficiently tackling diverse scenarios with unmatched versatility.50Hz High Frame Rate: 50Hz frame rate captures thermal dynamics instantly, ensuring zero missed detections in industrial inspections.90% Charge in 1 Hour: Charge to 90% in 1 hour, minimizing downtime for critical missions.2000℃ Ultra-High Temp: Covers -40℃ to 2000℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.5 Focus Modes: 5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.PerIRVision Panoramic Stitching: AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.Local Dimming: Features 4 LevelSpan modes (A, M, S, L), where mode L enables real-time target framing. Touch to move the region, dynamically enhancing contrast in focused areas while highlighting potential anomalies.Applications:Mechanical & electrical inspectionsSmart manufacturingTechnical Parameters:Detector typeVOx, 7.5 to 14μmInfrared resolution320×240@12μmSuper resolutionYes, Upgrade to 640×480NETD30mKFrame rate50Hz/9HzFocal length8.5mmField of view25°×19°IFOV1.36mradMin. object distance0.15mD:S735:1Focusing modeManual / Automatic / Touch autofocus / Continuous autofocusDigital zoom1.1x to 8xMeasurement rangeSupport auto-switching: -40°C to 150°C, 0°C to 650°C, 500°C to 2000°C (RangeMax Ultra-wide measurement range lens kit)Measurement accuracy±2°C or ±2%, whichever is greaterAnalyzed target8 in total (Spot/Line/Area)AlarmFull screen temperature threshold alarm (image, voice, color and flash)OthersCustomized physical button, OTA updateNote: Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.Key Specifications:Model: H3Brand: Guide SensmartIR Resolution: 320x240 (upgradable to 640x480)Frame Rate: 50HzMeasurement Range: -40°C to 2000°CFocusing: Manual / Automatic / Touch autofocus / Continuous autofocusDigital Zoom: 1.1x to 8x
