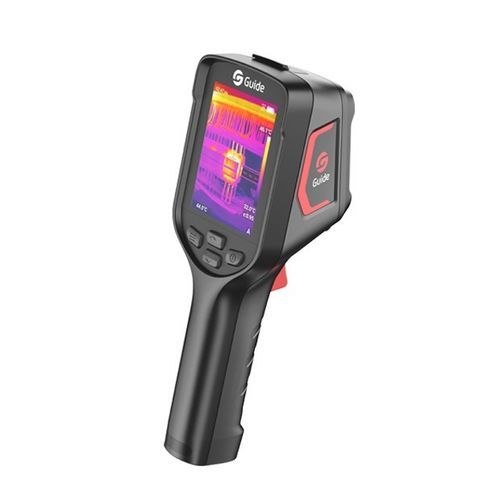

Thermal camera E4

digitalmechanicalIR

Tool-like Thermal cameraThe EasIR Series offers high-resolution detectors (256×192 or 384×288) for precise capture of minute temperature variations. Featuring IR-Perfclear technology, it optimizes image details and reduces noise in real time, delivering exceptionally clear thermal imaging. The device is equipped with a 3.5-inch bright HD display and a 2 MP visible-light camera, supporting both synchronous display or image fusion of thermal and visible-light. Enhanced with smart capabilities including live video streaming, recording, Wi-Fi connectivity, and OTA upgrades, it significantly boosts work efficiency.384×288@12μm IR Resolution25mK NETD-20°C~650°C Measurement range30Hz/9Hz Frame rateProduct Features:3.5-inch large screen: The expansive 3.5-inch display provides a clear view of details, enabling precise control of critical information.Real-time IR-Perfclear technology: Features IR-Perfclear real-time super resolution technology for 4x image quality enhancement.Up to 650℃ Measurement Range: Measurement range covers -20℃ to 550°C / 650℃, enabling stable analysis in challenging environments.OTA Updates: Featuring encrypted transmission and verification for secure and stable upgrades. Update with a single click, anytime, anywhere.2-Meter Drop Proof: Certified for 2-meter drop resistance. Unfazed by rain, high temperatures, or harsh conditions.Applications:Mechanical & electricalSmart ManufacturingTechnical Parameters:Detector typeVOx, 7.5 to 14μmInfrared resolution384×288@12μmSuper resolutionYes, Upgrade to 768×576NETD25mKFrame rate30Hz/9HzFocal length7mmField of view37°×28°IFOV1.71mradMin. object distance0.3mD:S588:1Focusing modeFocus-freeMeasurement rangeSupport auto-switching: -20°C to 150°C, 0°C to 650°CMeasurement accuracy±2°C or ±2%, whichever is greaterAnalyzed targetCenter spot; Three Fixed Areas: Small, Medium, Large (Alternative)AlarmFull screen temperature threshold alarm (image and flash)* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.Key Specifications:IR Resolution: 384×288@12μmNETD: 25mKMeasurement range: -20°C~650°CFrame rate: 30Hz/9HzFocal length: 7mmField of view: 37°×28°IFOV: 1.71mradMin. object distance: 0.3mD:S: 588:1Focusing mode: Focus-freeMeasurement accuracy: ±2°C or ±2%, whichever is greaterAlarm: Full screen temperature threshold alarm (image and flash)
