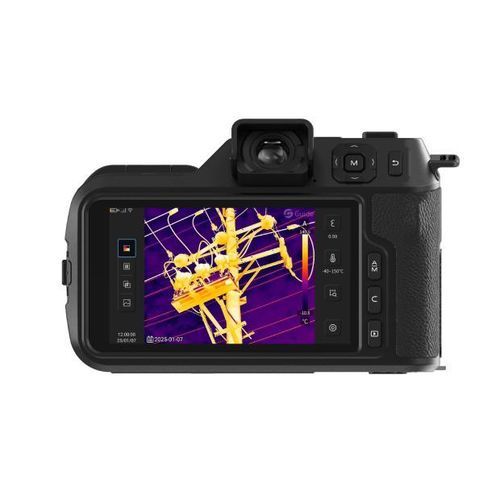

Digital imager PT650

industriallaboratoryenvironmental

HD High-Performance Thermal Camera PT II series Flagship Edition Megapixel Thermal Imager of Guide Sensmart incorporates a new generation of self-developed uncooled infrared focal plane detector, achieving a resolution of up to 1280×1024. Its exclusive A/M-Focus manual/automatic hybrid focusing system delivers superior image quality and enhanced operational flexibility. The PT Series has undergone comprehensive upgrades in hardware configuration, software systems, and user experience, aiming to establish a new industry benchmark. - IR resolution: 640×512 - 1-lens TwinView: DFOV - Charges to 90%: in 1 Hour - Temperature Range: Up to 2500°C Product Features: - TwinView DFoV Lens: Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes—efficiently tackling diverse scenarios with unmatched versatility. - 50Hz High Frame Rate: 50Hz frame rate captures thermal dynamics instantly, ensuring zero missed detections in industrial inspections. - 90% Charge in 1 Hour: Charge to 90% in 1 hour, minimizing downtime for critical missions. - 2500℃ Ultra-High Temp: Covers -40°℃ to 2500℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors. - 5 Focus Modes: 5 focus modes and rapid focus system boost success rates by 90% in complex scenarios. - PerIRVision Panoramic Stitching: AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more. Applications: - Mechanical & electrical - Smart Manufacturing - Electrical - Scientific Research Technical Parameters: - Detector type: VOx, 7.5 to 14μm - Infrared resolution: 640×512@12μm - Super resolution: Yes, Upgrade to 1280×1024 - NETD: 30mK - Frame rate: 50Hz/9Hz - Focal length: 17.6mm - Field of view: 25°×19° - IFOV: 0.68mrad - Min. object distance: 0.3m - D:S: 1466:1 - Focusing mode: Manual / Automatic / Touch autofocus / Continuous autofocus - Digital zoom: 1.1x to 40x - Measurement range: Support auto-switching: -40°C to 150°C, 0°C to 650°C, Optional 400°C to 2500°C (High temperature lens is required) - Measurement accuracy: ±1°C or ±1%, whichever is greater - Analyzed target: 30 in total (Spot/Line/Area) - Alarm: Full screen temperature threshold alarm (image, voice, color and flash) - Others: Customized physical button, NFC connection, OTA update * Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you. Key Specifications: - Model: PT650 - Detector type: VOx, 7.5 to 14μm - Infrared resolution: 640×512@12μm - Super resolution: Yes, Upgrade to 1280×1024 - NETD: 30mK - Frame rate: 50Hz/9Hz - Focal length: 17.6mm - Field of view: 25°×19° - IFOV: 0.68mrad - Min. object distance: 0.3m - D:S: 1466:1 - Focusing mode: Manual / Automatic / Touch autofocus / Continuous autofocus - Digital zoom: 1.1x to 40x - Measurement range: -40°C to 150°C, 0°C to 650°C, Optional 400°C to 2500°C (High temperature lens required) - Measurement accuracy: ±1°C or ±1%, whichever is greater - Analyzed target: 30 in total (Spot/Line/Area) - Alarm: Full screen temperature threshold alarm (image, voice, color and flash) - Others: Customized physical button, NFC connection, OTA update
