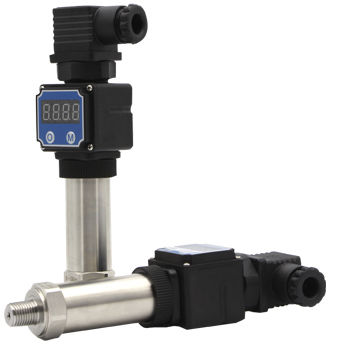

Absolute pressure transmitter GPT204 siliconpiezoresistivedigital
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- silicon, piezoresistive
- Output
- digital
- Supply voltage
- 24 Vdc, 36 VDC, 5 VDC
- Mounting
- threaded
- Process connection
- G 1/2, G 1/4, NPT 1/2
- Material
- stainless steel
- Protection level
- intrinsically safe, IP65
- Other characteristics
- two-wire, OEM, RoHS
- Pressure range
Max.: 100,000,000 Pa
(14,503.77 psi)Min.: -0.1 Pa
(-0 psi)- Precision
0.25 %, 0.5 %
- Long-term stability
0.2 %
- Process temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)
Description
OEM Is Available
Diffused Silicon Sensor
Multiple Connectors and Ports
Nonpolar Two-wire Current Output
RoHS Compliant
GPT204 pressure transmitter is a high stability all solid state pressure transmitter for general usage. The product is manufactured with high stability and reliability piezoresistive pressure sensor, exclusive circuit, diffuse silicon piezoresistance core and stainless steel construction. Its circuit could transfer millivolt signal to standard voltage or current signal. Moreover, the product is vibration and shock proofed. With multiple welding, it could be used under harsh environments, user friendly.
Catalogs
GPT204
2 Pages
