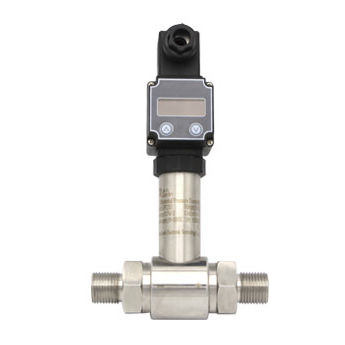

Differential pressure transmitter GPT250 siliconpiezoresistivedigital
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- silicon, piezoresistive
- Output
- digital
- Mounting
- threaded
- Process connection
- NPT 1/4, G 1/2, G 1/4, NPT 1/2
- Material
- stainless steel
- Protection level
- IP65
- Applications
- process, for the aeronautical industry, automotive
- Other characteristics
- CE, OEM, oil-filled
- Pressure range
Max.: 5,000,000 Pa
(725.19 psi)Min.: 0 Pa
(0 psi)- Precision
0.2 %, 0.5 %
- Long-term stability
0.3 %
- Process temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)
Description
Adopting the 316L SS isolation diaphragm structure
Differential type
ExiaⅡCT6 & CE certification
Can be external zero adjustment and full range
Shock and vibration resistance, resistance to electromagnetic compatibility
GPT250 Integrated differential pressure transmitter adopts the OEM silicon piezoresistive differential pressure oil-filled core body , as a full stainless steel structure, shell has a strong corrosion resistance, pressure interfaces for the threaded connection, can be directly installed on the measuring pipe or through pressure pipe connection. It is widely used for differential pressure, liquid level, flow measurement and control in process control, aviation, aerospace, automotive, medical equipment, HVAC etc.
