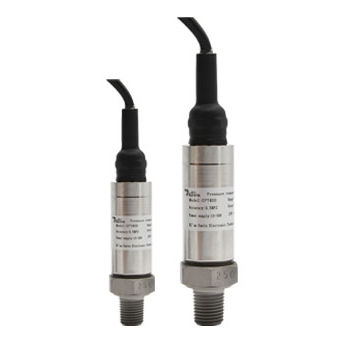

Relative pressure sensor GT400
strain gaugestainless steel

relative pressure sensor
relative pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
strain gauge
Material
stainless steel
Process temperature

Min.: -40 °C (-40 °F)

Max.: 125 °C (257 °F)

Pressure range

Min.: 0 Pa (0 psi)

Max.: 70,000,000 Pa (10,152.64 psi)

Description

Measure range: Minimum 0-350Kpa, Maximum 0-70MPa 17-4PH or 316L stainless steel isolation, all stainless steel construction No internal pressure port O-rings, no welding, no silicone oil, no leakage risks High reliability, high overload Shape structure diversification The pressure used strain silicon technology and traditional metal strain gauge principle, the new technology uses silicon strain gauges and temperature sintering process, making the pressure sensor sensitivity increased more than five times, and then with a proprietary digital amplifier and digital temperature compensation circuit, the electrical characteristics of the sensor , temperature characteristics and long-term stability is guaranteed. Sensor interface and housings are made of stainless steel, with good corrosion resistance. This product can be widely used in industrial, aviation, aerospace, automotive, medical and other fields of refrigeration.
