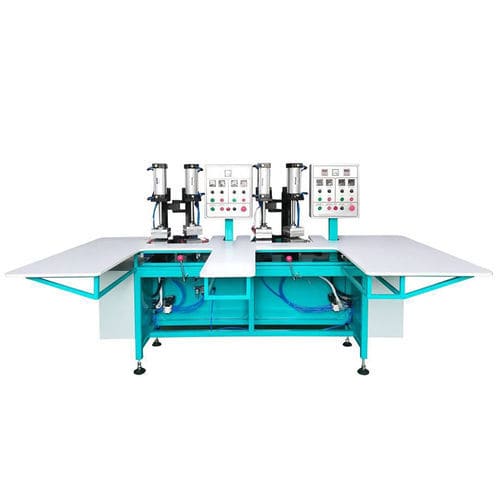

Hot plate welding machine

for gaskets220V single phasepneumatic

Overview

The plastic silicone gasket seal welding machine is designed for corner welding of silicone gaskets. It provides easy operation and lightweight construction while supporting continuous production of sealing profiles.

Applications

• Refrigeration room gaskets
• Automotive gaskets (doors, trunks)
• Container and shipping gaskets
• Other silicone sealing profiles requiring corner welding

Key features

• Compact footprint and lightweight design for shop-floor use
• Simple operation suitable for production lines with medium throughput
• Reliable control components: Contactor Siemens, Time Relay Xin Ling
• Mold material: 4Cr13 for consistent weld quality
• Pneumatic components sourced from China

Technical specifications

• Dimensions: 2440 × 1200 × 1500 mm
• Horizontal clamping stroke: 50 mm
• Longitudinal clamping stroke: 80 mm
• Electric heating system power: 3.2 kW
• Heating bar: φ12 × 120 mm
• Work efficiency: 200-350 sets / shift
• Power supply voltage: 220V 50Hz (can be customized according to customer requirements)
• Contactor: Siemens
• Time Relay: Xin Ling
• Mold material: 4Cr13
• Pneumatic components: China

Customization & options

• Voltage and frequency configurable to customer requirements
• Mold design and materials customizable for specific gasket profiles
• Optional pneumatic and control components available on request

After-sales & support

• Technical documentation and spare parts list provided
• Installation guidance and operator training available on request
