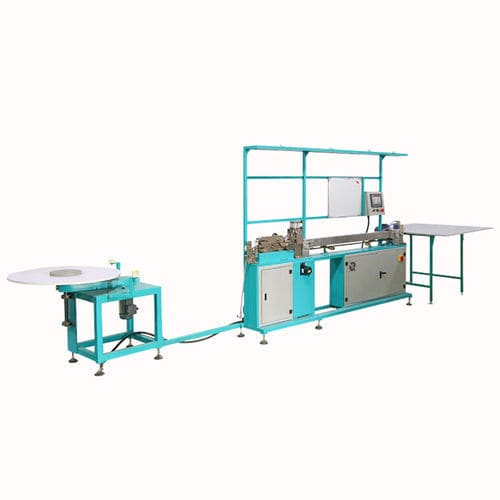

Inserting machine Magnet strip inserting machine

The magnet strip inserting machine is a servo-controlled production machine designed to insert magnetic strips into soft PVC gaskets for refrigerator door seals. It features a Mitsubishi servo control system with touch-screen parameter input. Drive power is provided by a servo motor and a cylinder. The magnetic strip is fed from an unwrapping/feeding unit and can be inserted into gaskets at a 45° angle.

Main components

• Magnetic strip spreading device
• Magnetic strip tensioner device
• Magnetic detection device
• Magnetic strip haul-off device
• Magnetic strip cutting device
• Magnetic strip inserting device

Technical specifications

• Control system: Mitsubishi servo control; touch screen for size/parameter input
• Function: insert magnetic strip into soft PVC gasket (fridge door seal), insertion at 45°
• Power supply (table): 380V 50Hz
• Electrical supply (summary): 380V/50Hz/16A (designed per client requirements)
• Current: 16A
• Max Power: 1.6 KW (product summary) / 3.5 KW (technical table)
• Accuracy: <±0.1 mm
• Production rate: 1–20 m/min
• Opening roll device dimension: 1200 × 1200 × 1200 mm
• Opening roll device weight: 120 Kg
• Overall machine dimension: 4200 × 650 × 1450 mm
• Total weight: 540 Kg
• Workable dimension: 1300 × 1200 × 1100 mm
• Workable weight: 45 Kg
• Control panel dimension: 500 × 600 × 1100 mm
• Output (approx.): 10,000 m / 12 hours
