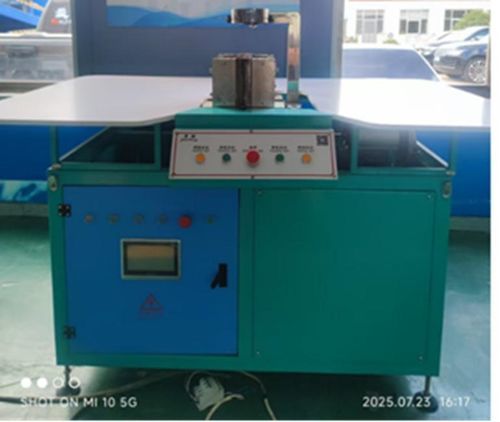

Hot plate welding machine

automaticstandalonefor gaskets

Overview

This EPDM Door Gasket Welding Machine EPG-01 is an automatic workstation engineered for welding EPDM door gaskets. It combines controlled electric heating and accurate mechanical clamping to deliver consistent gasket assemblies suitable for high-volume production.

Key features

• Automated welding cycle with programmable control for repeatability
• Stable electric heating system: 5.6 KW
• Precise clamping: horizontal stroke 50 mm, longitudinal stroke 120 mm
• Programmable controller, touch screen and temperature module by Huichuan
• Time relay by Xinling and pneumatic components by Airtac / Xinyi
• Mold material: 40Cr for durable tooling
• Designed for production rates of 300–500 sets per shift
• Standard power: 220V 50Hz

Technical specifications

• Overall dimension: 1850×1100×1300 mm
• Horizontal clamping stroke: 50 mm
• Longitudinal clamping stroke: 120 mm
• Electric heating system power: 5.6 KW
• Working efficiency: 300–500 set/shift
• Power voltage: 220V 50Hz
• Programmable controller: Huichuan
• Touch screen: Huichuan
• Temperature module: Huichuan
• Time relay: Xinling
• Mold material: 40Cr
• Pneumatic component: Airtac / Xinyi

Applications

• Production of EPDM door gaskets for automotive and industrial doors
• Assembly lines requiring consistent weld quality and repeatable cycles
• Tooling integration for gasket trimming and finishing operations

Ordering & support

Machine configurable for specific gasket profiles and production rates. Spare parts and technical support available; provide gasket dimensions and expected throughput for configuration recommendations.
