- Profile extruder
- Xiamen Dexing Magnet Tech. Co., Ltd.

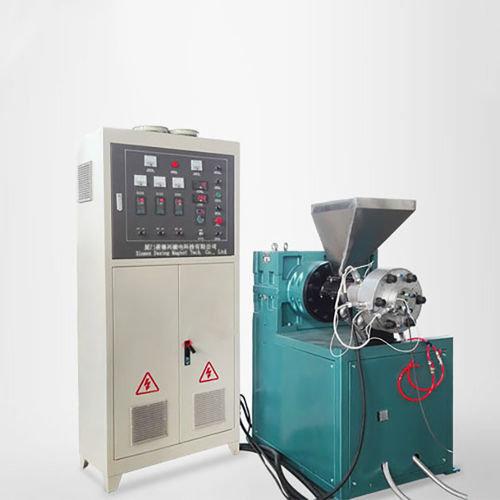

Profile extruder Magnetic Strip Extrudergrooved feedcompactcorrosion resistant
Add to favorites
Compare this product
Characteristics
- Applications
- profile
- Other characteristics
- grooved feed, compact, corrosion resistant, abrasive wear resistant, low energy consumption, smooth bore
- Screw diameter
Max.: 60 mm
(2.4 in)Min.: 60 mm
(2.4 in)- Screw length
Max.: 540 mm
(21 in)Min.: 540 mm
(21 in)- Maximum speed
Max.: 24 rpm
(151 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Temperature
Max.: 120 °C
(248 °F)Min.: 0 °C
(32 °F)- Weight
Max.: 3,000 kg
(6,614 lb)Min.: 3,000 kg
(6,614 lb)- Power
Max.: 11 kW
(14.96 hp)Min.: 11 kW
(14.96 hp)
Description
Overview
Key features
Multimedia
Technical specifications
- Primary use: production of magnet strips for refrigerator door gaskets.
- Improvements vs. previous model: higher output, stable magnetizing, longer screw and barrel life, twin-station winder, automatic alarm system, and convenient operation.
Key features
- Good plasticization with low energy consumption and low noise; stable operation, large bearing capacity and long service life.
- Screw geometric parameters can be specially customized for different raw materials and products (different L/D ratios and structures available).
- Screw and barrel manufactured from new high-performance alloy steel for corrosion resistance, wear resistance and high strength.
- Barrel heating section available in two structures (grooved section and smooth section) to meet the needs of different raw materials.
- Compact and reasonable overall machine design for easy maintenance and operation.
Multimedia
- Photographs and production-line images available (multiple views of the Magnetic Strip Extruder).
- Demo / introduction video available (product video titled "Magnetic Strip Extruder").
Technical specifications
- Screw diameter: ø60 mm
- Barrel material: Cr12
- L/D (length-to-diameter ratio): 9
- Compression ratio: 1.39
- Screw rotation speed: 0–24 r/min
- Extruder motor power: 11 kW
- Drawing motor power: 0.75 kW
- Twisting motor power: 0.55 kW
- Heating power: 2.9 kW
- Cooling water volume: 0.6 m3/h
- Heating temperature control range: 0–120 °C
- Installed gross capacity: 25 kW
- Magnetize capacitance: 6000 UF
- Voltage: 500 V
- Capability / production speed: 10–12 m/min (based on 9 mm × 3 mm magnetic strip model)
- Surface magnetic field intensity: same pole 720–850 GS; different pole 1300–1500 GS
- Weight: about 3000 kg
