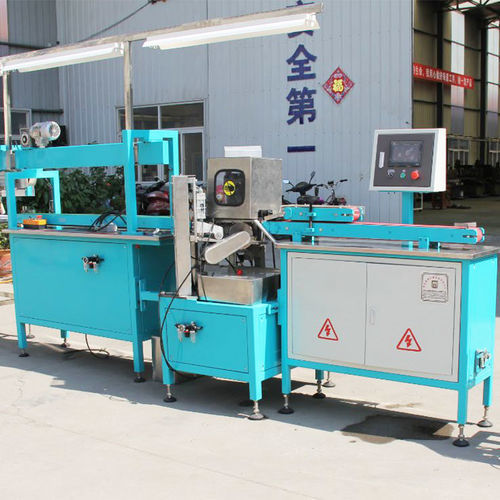

Rotary blade cutting machine Door Gasket Cutting Machine

for rubberfor windowsfor door

Overview

The Automatic Door Gasket Cutting Machine produces door sealing profiles with smooth surfaces, no burrs, uniform thickness, strong elasticity and resistance to wear and temperature variations. It performs automatic punching, miter cutting and handling of gasket profiles for refrigerators, freezers, water dispensers, beverage cabinets, disinfection cabinets, kitchen appliances, profile doors and windows and other industrial products.

Components / Included sets

• 1. Automatic puncher — 1 set
  • Motor: 120W, 380V, 50Hz
  • Photoelectric switch: OMRON
  • Cylinder: AIRTAC (Taiwan)
  • Magnetic pneumatic elements: Made in Shanghai, China
  • Cover: Transparent PMMA plate
• 2. 45° cutting machine — 1 set
  • PLC control system: Delta
  • Pneumatic elements: SXPC (Made in Shanghai)
  • Motor of No.1 stainless steel saw: 0.37KW, 50Hz, 380V
  • Motor of No.2 stainless steel saw: 0.37KW, 50Hz, 380V
  • Contactor: SIEMENS (Germany)
  • Limit switch: OMRON (Japan)
  • Servo motor: Delta (Taiwan)
  • Saw: Alloy stainless steel, diameter 150 mm
  • Cover: Transparent PMMA plate
  • Lights: Made in China
• 3. Mechanical hands — 1 set
  • Photoswitch: OMRON
  • Motor: 0.37KW, 50Hz, 380V
  • Pneumatic elements: AIRTAK (Made in Taiwan)
  • Discharging table: Stainless steel
  • Lights: Made in China
• 4. Spares details
  • Synchronous belt: 150L / 210L / 220 / 334 / 480L — 1 piece
  • Punching needle — 5 pieces
  • Cutter blade — 2 pieces

Technical specifications

• Product name: Door Gasket Cutting Machine
• Main function: Automatic cutting, punching and handling of door gasket profiles for appliances and industrial doors/windows
• Puncher motor: 120W, 380V, 50Hz
• Saw motors (cutting machine & mechanical hands): 0.37KW, 50Hz, 380V
• Saw blade: Alloy stainless steel, Ø 150 mm
• Control: PLC (Delta); Servo motor: Delta (Taiwan)
• Electrical/automation components: OMRON (photoelectric switch, limit switch), SIEMENS (contactor)
• Pneumatic components: AIRTAC / AIRTAK / SXPC (Taiwan / Shanghai makes)
• Covers / guards: Transparent PMMA plate
• Discharging table: Stainless steel
• Typical spare parts supplied: synchronous belt, punching needles, cutter blades

Applications

• Refrigerators and freezers
• Water dispensers and beverage cabinets
• Disinfection cabinets and kitchen appliances
• Profile doors and windows
• Other industrial door and appliance sealing applications

Spare parts & maintenance

• Typical spares supplied: synchronous belts, punching needles, cutter blades
• Transparent PMMA guards for visual inspection and safety
• Stainless-steel discharge table for corrosion resistance and easy cleaning
