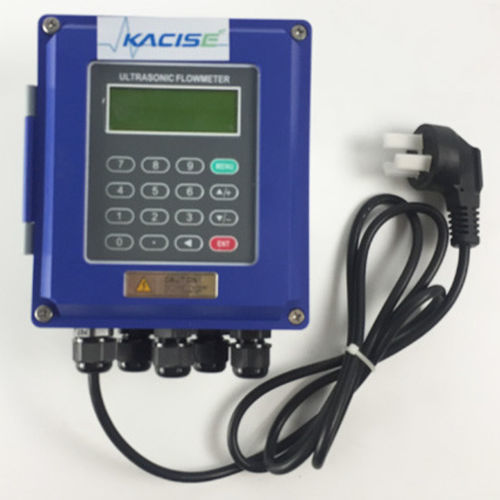

Ultrasonic flow meter KUFS2000A2

for liquidsDN15 - 1/2"DN25 - 1"

Ultrasonic flow meter is based on the principle of "velocity difference method" to measure the liquid flow in the pipe. It adopts advanced multi-pulse technology, digital signal processing technology and error correction technology, so that the flow meter can adapt to the environment of the industrial site, more convenient, economic, accurate measurement. Its measuring accuracy is very high, the highest clamp installation can also reach the accuracy of ±0.5%, almost free from the interference of various parameters of the measured medium, especially can solve the other meters can not be strong corrosive, non-conductive, radioactive and inflammable and explosive media flow measurement problems. KUFS2000 series separated type ultrasonic flow meter usually used in various liquids, and it support measuring online long-term. No need to cut the pipe, flow when you install it. The host has wall mounting type, panel mount type, explosion proof type; Sensors include clamp on type, plug in type and pipe type. It can measure heat if add temperature sensor. The KUFS2000A2 flow meter can be installed on the wall or in instrument box, protection grade is IP67. Suitable for pipe sizes from DN15mm to DN6000mm.
