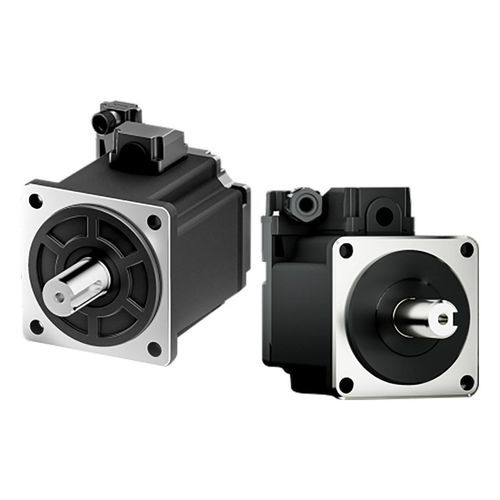

Low voltage servomotor MF5 series

DC48 Vcompact

Overview
The MF5 series low-voltage servo motor features a shortened housing, high ingress protection (IP67), enhanced overload capability and high rotor inertia across the range. A factory-integrated 17-bit single- and multi-turn magnetic encoder simplifies selection and improves positioning performance.

Key product features

• Shorter body — Optimized magnetic circuit reduces axial length; MF5H is approx. 30% shorter than MF3S.
• Overload capability — Standard 3× overload rating for reliable start/stop under heavy loads.
• High positioning accuracy — Integrated 17-bit magnetic encoder (single- and multi-turn).
• Advanced insulation — Insulation class F for improved thermal endurance in industrial environments.
• Ingress protection — IP67 rating for operation in oily, humid or dusty conditions.

Applications / Positioning
Designed for low-voltage motion control applications that require reduced motor length, robust environmental protection and high positioning precision, such as robotics, compact conveyors, packaging machines and automated assembly lines.

Technical specifications

• Series: MF5
• Protection: IP67
• Encoder: 17-bit magnetic (single- and multi-turn)
• Overload: 3× (standard)
• Insulation class: F
• Design note: MF5H ≈ 30% shorter than MF3S
• Characteristic: Large inertia throughout the range

Integration and maintenance

• Standard interfaces for integration with common servo drives and controllers.
• IP67 sealing reduces cleaning and maintenance frequency in harsh environments.
• Refer to manufacturer documentation for mounting dimensions and thermal management guidelines.
