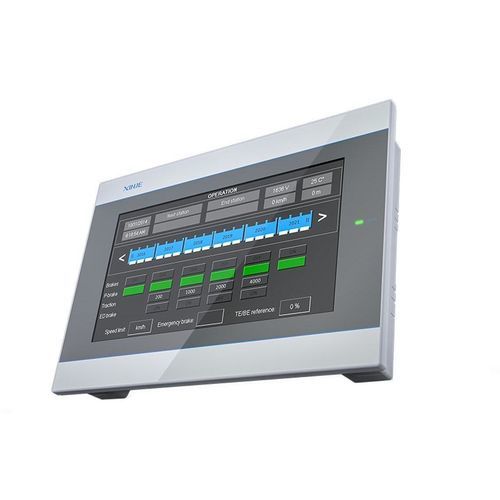

Resistive touch screen HMI TS5 series

panel-mount1920 x 10801024 x 600

Overview
The TS5 series IoT human-machine interface (HMI) provides core IoT functions for centralized monitoring, remote maintenance, multi-terminal viewing and diversified protocol interfaces to support information exchange in automated and intelligent production sites.

Key features

• Core IoT functions: remote maintenance, multi-terminal viewing, diversified protocol interfaces.
• Seamless connectivity to XINJE Cloud for centralized device monitoring, data storage, alarm push and X-Data import.
• No gateway required: optional WiFi or 4G for wireless networking; optional XINJE IoT network card, plug and play without activation.
• VNC remote desktop support for real-time image monitoring and control from PC or mobile devices.
• Remote transparent transmission enabling PLC program download via Ethernet/4G/WiFi without physical cables.
• Multiple upload/download methods: Type-C, USB flash drive, LAN or remote transfer.
• Streaming media and network camera connection for remote real-time video monitoring (TS5D variant supports video surveillance and preset playback).
• CODESYS label communication support via API provided by XINJE Cloud to facilitate IT/OT integration.
• Support for mainstream industrial protocols such as MQTT, TCP/IP and OPC UA.

Connectivity & Cloud

• Direct access to XINJE Cloud for centralized device monitoring, data storage, alarm push and BI analysis for on-site visualization.
• Fast IT/OT data channel supporting MQTT, TCP/IP, OPC UA and related protocols.

Multimedia & Video

• Streaming media and preset video playback supported; audio enhances playback experience.
• TS5D supports network camera connections for remote real-time monitoring of targeted areas.

Remote management & maintenance

• Remote maintenance and transparent transmission enable program download and system maintenance over Ethernet/4G/WiFi.
• VNC support permits remote real-time control and monitoring from PCs or mobile devices.

Usage scenarios

• Centralized production monitoring and remote maintenance operations.
• IT/OT integration projects requiring cloud connectivity and protocol conversion.
• Sites requiring integrated remote video surveillance within the HMI.

Specifications

• Processor: ARM Cortex‑A7.
• Main frequency: 1.2 GHz / 1.0 GHz options.
• Memory: 256 MB.
• Storage: large-capacity storage (model-dependent).
• Wireless: optional WiFi or 4G; optional XINJE IoT network card (plug and play, no activation required).
• Interfaces: Type-C, USB (supports USB flash drive), LAN.
• Protocols & support: MQTT, TCP/IP, OPC UA, VNC remote desktop, API for CODESYS label communication.
• Cloud integration: compatible with XINJE Cloud for device monitoring, data storage, alarm push, X-Data import and BI analysis.
• Remote transparent transmission: download PLC programs via Ethernet/4G/WiFi.
• Multimedia: streaming media and network camera support; TS5D variant supports video surveillance and preset playback.
• Upload/download methods: Type-C, USB flash drive, LAN or remote transfer.
