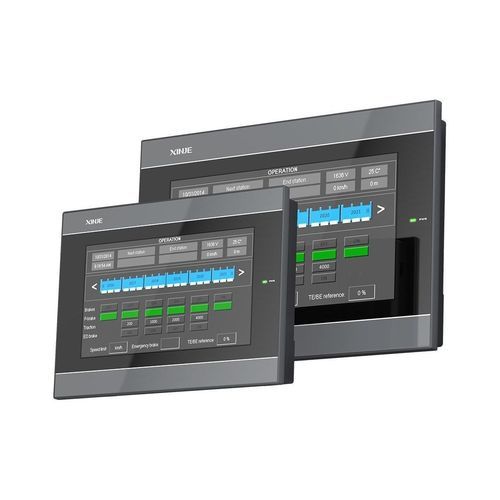

Resistive touch screen HMI TS3 series

panel-mount800 x 480Solo / Dual core ARM® Cortex™-A7

Product overview
XINJE TS3 series standard HMI runs Linux on an ARM Cortex‑A7 dual‑core processor to deliver responsive operation and efficient touch‑screen data handling for industrial control applications.

Key Features

• High‑speed processor and efficient system: ARM Cortex‑A7 dual‑core, 1 GHz CPU, 128 MB built‑in memory; Linux OS with multitasking for faster response and stable operation.
• Structural optimization and enhanced protection: improved sealing to reduce ingress of dust, water vapor and debris for use in demanding environments.
• Lightweight, compact design: total weight 0.58 kg and a slim 35 mm profile for simplified mounting and handling.
• Extensive connectivity: multiple communication ports to support integration with various industrial devices and controllers.
• Flexible installation: supports installation in four orientations to accommodate diverse site configurations.
• TouchWin Pro editing tool: supplied TouchWin Pro tool simplifies HMI project programming and shortens engineering time.

Related product information
Standard TS3 HMI targeted at applications requiring a balanced combination of processing performance, multiple interface options and improved sealing; suitable for control panels and operator stations in industrial environments.

Technical specifications

• Processor: ARM Cortex‑A7 dual‑core
• CPU clock: 1 GHz
• Memory: 128 MB built‑in
• Operating system: Linux with multitasking support
• Protection: improved sealing against dust, water vapor and debris
• Weight: 0.58 kg
• Thickness: 35 mm
• Installation: supports installation in four directions
• Connectivity: multiple communication ports
• Software: TouchWin Pro editing tool supported
