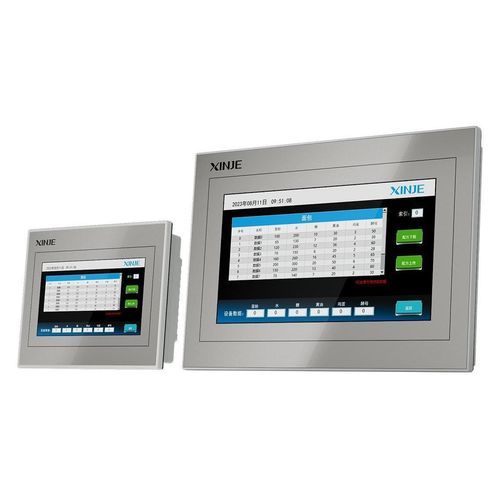

Resistive touch screen HMI TS2 series

panel-mountfor integration480 x 272

Product overview
XINJE TS2 series HMI is built on a Linux platform and powered by an A7 dual-core 1 GHz processor. The hardware is designed for industrial use and the product is compatible with existing panel cutouts. Programming and visualization are handled via TouchWin Pro for an efficient HMI workflow.

Key benefits

• Smooth, responsive interface for effective operator interaction.
• Industrial-grade front panel and mechanical design for use in demanding environments.
• Compatible with existing panel hole sizes to simplify retrofits and replacements.

Environment and installation

• Front panel protection: IP65, suitable for industrial sites.
• Free installation in four directions to accommodate different mounting requirements.

Software and usability

• Compatible with TouchWin Pro editor for convenient programming and flexible function options.
• Supports synchronous screen monitoring over LAN and HMI program downloads where supported by the model.

Interfaces

• Ethernet (–E model only): supports HMI program download, LAN screen monitoring, and connection to PLCs and other devices.
• USB-B: download port for screen data.
• USB-A: host USB for storage expansion and peripherals (mouse, keyboard, barcode scanner, printer).
• COM1/COM2: RS232/RS485 interfaces for PLCs, servo drives, instruments, micro printers, serial scanners, etc.

Additional product highlights

• Designed for value-oriented installations while maintaining industrial integration features.
• Front-panel and mechanical dimensions compatible with common industrial cutouts for easy replacement.

Specifications

• Model series: TS2 series
• Processor: A7 dual-core 1 GHz
• Operating system: Linux
• Front panel protection: IP65
• Installation: four-direction free installation
• Programming/editor: TouchWin Pro compatible
• Interfaces: Ethernet (–E model only), USB-B (download), USB-A (host), COM1/COM2 (RS232/RS485)
• Mechanical compatibility: compatible with existing product hole sizes for retrofit/replacement
• Typical uses: industrial control panels, machinery HMI, IoT HMI deployments (where applicable)
