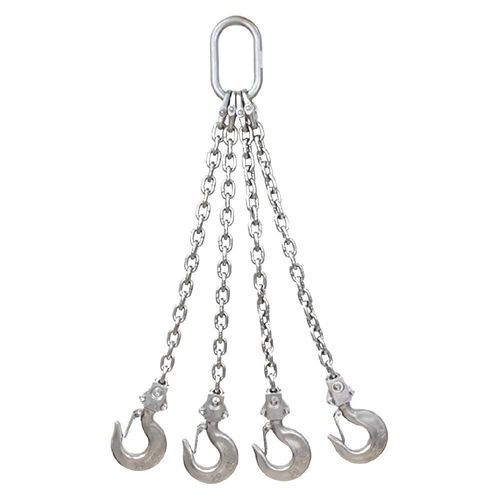

4-point sling G60

1-point2-point3-point

Product Overview
Stainless Steel Grade 60 chain sling is a lifting assembly manufactured from stainless steel lifting chain and matched components for corrosion-resistant industrial lifting. Available in single-leg, double-leg, three-leg and four-leg configurations, it is suitable for marine, offshore, food processing, chemical and general industrial lifting applications where corrosion resistance and traceability are required.

Introduction
The sling comprises stainless steel lifting chain and load-bearing components such as master links, connecting links, shortening devices and lifting hooks. Assemblies are supplied as single-leg, two-leg, three-leg or four-leg configurations with chain diameter, working length and end fittings selected to match the rated load and lifting arrangement. Selection must consider load weight, number of loaded legs, sling angle, load symmetry, temperature and operating environment. Do not exceed the WLL marked on the identification tag.

Lifting Configuration

• 1-Leg: Lifting point must be vertically above the load center of gravity.
• 2-Leg: Lifting points positioned on both sides of the center of gravity.
• 3-Leg / 4-Leg: Distribute lifting points around the center of gravity for controlled load sharing.
• For multi-leg assemblies, inclination angle β must be >15° and ≤60°.

Working Conditions
Full rated WLL applies from -40°C to +250°C. From +250°C to +350°C permissible WLL is reduced to 75%; from +350°C to +450°C to 50%. For AISI 318LN Duplex components maximum operating temperature is 350°C. Use in acids, alkalis or their vapors requires confirmation of material compatibility for the actual chemical environment.

Load Conditions

• Do not twist or knot chain legs.
• Hooks must carry the load in the hook saddle, not on the tip.
• Avoid shock loading and jerks.
• Choker hitch reduces rated WLL to 80%.
• If equal load distribution cannot be ensured, reduce applicable WLL according to asymmetric loading guidance in the operating instructions.

High-Cycle Lifting
For applications exceeding 20,000 stress cycles (automated or repetitive handling), consider dynamic loading and select chain sizing per DIN EN 818-7 mechanism group 1Bm/M3 to reduce stress in high-cycle service.

Parameter
Item - Specification
Product Name - Stainless Steel Grade 60 Chain Sling
Material - Stainless Steel
Grade - Grade 60
Standard - DIN 5688-1
Configuration - Single Leg / Double Leg / Three Leg / Four Leg
Chain Diameter - Customized
Working Load Limit (WLL) - According to chain diameter and sling configuration
Safety Factor - According to applicable lifting standard
Surface Finish - Blasted
Components - Master Link, Hooks, Connecting Components
Length - Customized
Certification - Test Certificate Available
Application - Marine, Offshore, Chemical, Food Processing, Industrial Lifting

Standards
Manufacturing Standards
Manufactured from stainless steel lifting chain and compatible components to:

• DIN 5688-1
• DIN 5687
• DIN 7541
• Applicable DIN EN 818 lifting chain requirements

Testing Standards
Each chain sling is inspected before delivery, including:

• Material verification
• Dimensional inspection
• Component inspection
• Identification marking verification
• Working Load Limit verification
• Proof test documentation

Application Standards
Designed for lifting operations in:

• Marine equipment handling
• Offshore maintenance
• Food processing facilities
• Chemical industry
• Clean production environments
• Industrial lifting operations

Maintenance Standards
Regular inspection should include:

• Chain link wear
• Chain deformation
• Hook condition
• Component damage
• Corrosion condition
• Identification marking

The sling must be removed from service when:

• Chain thickness is reduced by wear
• Chain links are permanently deformed
• Hooks are damaged or excessively opened
• Cracks or structural damage are found

Technical specifications

• Product Name: Stainless Steel Grade 60 Chain Sling
• Brand: TOPONE CHAIN
• Material: Stainless Steel
• Grade: Grade 60
• Standards: DIN 5688-1, DIN 5687, DIN 7541, applicable DIN EN 818
• Configurations: Single-leg, Double-leg, Three-leg, Four-leg
• Chain Diameter: Customized
• Length: Customized
• Working Load Limit (WLL): As marked on product, depends on chain diameter and configuration
• Temperature range for full WLL: -40°C to +250°C
• WLL reduction: +250°C to +350°C → 75%; +350°C to +450°C → 50%
• Surface Finish: Blasted
• Components: Master link, hooks, connecting components
• Certification: Test certificate available; proof test documentation and traceability
• Applications: Marine, offshore, food processing, chemical and industrial lifting
• High-cycle guidance: Consider DIN EN 818-7 and reduce stress for >20,000 cycles
• Inspection & maintenance: Material verification, dimensional and component checks, identification marking, remove from service on wear/deformation/damage
• MOQ: 1 Piece
• Packaging: Carton + Steel Pallet
