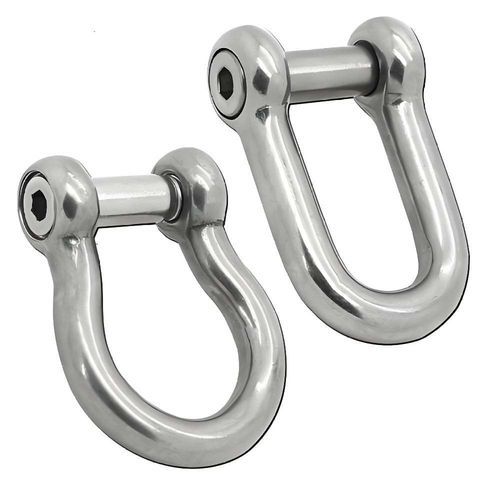

Moving head lifting shackle

with safety bolt and nutscrewstainless steel

Product Overview
Stainless steel shackle manufactured from AISI 316 stainless steel with a 6:1 design factor and highly polished surface finish. Available in Dee (D) and Bow (anchor) configurations, with safety bolt or screw/countersunk pin options. Suitable for marine, offshore, lifting, rigging and corrosion-resistant applications. Working load limit (WLL) from 0.4 t to 10 t.

Introduction
This stainless steel shackle is a corrosion‑resistant rigging component for connecting chains, wire ropes, slings and lifting accessories. Constructed from AISI 316 for enhanced resistance in marine and chemical environments. Dee and Bow variants can be supplied with safety bolt pins for permanent installations or screw/countersunk pins for temporary and frequent assembly applications.

Parameters
Dee Shackle with Countersunk Pin
WLL (t) 6:1 | Pin d1 | Nominal Size d (mm) | Inner Width a (mm) | Inner Length c (mm) | Eye Outer d2 (mm) | Weight (kg)
2 | M16 | 13 | 24 | 52 | 34 | 0.3
3 | M20 | 16 | 28 | 65 | 40 | 0.6
3 | M22 | 19 | 31 | 60 | 48 | 1.4

Dee Shackle with Safety Bolt
WLL (t) 6:1 | Pin d1 (mm) | Nominal Size d (mm) | Inner Width a (mm) | Inner Length c (mm) | Eye Outer d2 (mm) | Weight (kg)
0.6 | 10 | 10 | 20 | 40 | 20 | 0.2
0.9 | 12 | 12 | 26 | 50 | 24 | 0.3
1.5 | 16 | 13 | 24 | 52 | 33 | 0.4
2.5 | 20 | 16 | 28 | 65 | 40 | 0.7
3 | 22 | 19 | 31 | 60 | 48 | 1.5
4.5 | 24 | 22 | 37 | 71 | 52 | 1.3
7.5 | 33 | 28 | 46 | 90 | 64 | 3.0
10 | 36 | 32 | 52 | 100 | 72 | 4.1

Bow Shackle with Safety Bolt
WLL (t) 6:1 | Pin d1 (mm) | Nominal Size d (mm) | Inner Width a (mm) | Inner Length c (mm) | Bow Width e (mm) | Eye Outer d2 (mm) | Weight (kg)
0.6 | 10 | 10 | 20 | 40 | 27 | 20 | 0.2
0.9 | 12 | 12 | 25 | 47 | 37 | 24 | 0.3
1.5 | 16 | 13 | 25 | 47 | 33 | 34 | 0.4
2.5 | 20 | 16 | 28 | 60 | 42 | 40 | 0.8
3 | 22 | 19 | 31 | 71 | 51 | 48 | 1.3
4.5 | 25 | 22 | 37 | 84 | 58 | 52 | 1.7
7.5 | 32 | 28 | 46 | 108 | 74 | 64 | 3.4
10 | 35 | 32 | 52 | 119 | 83 | 72 | 5.2

Product Types and Key Parameters (summary table)
Product Type | Chain Bolt Type Dee | Anchor Bolt Type | Chain Screw Pin Dee | Anchor Screw Pin
Working Load Limit (WLL) | 0.6–10 t | 0.6–10 t | 0.4–3 t | 0.4–3 t
Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel
Pin Type | Bolt Type | Bolt Type | Screw Pin | Screw Pin
Main Application | Overhead lifting, corrosion environment | Anchor connection, lifting | Temporary connection | Temporary anchor connection
Long Term Installation | √ | √ | × | ×
Pick & Place Application | ○ | ○ | √ | √
Side Loading | √ | √ | √ | √
Pin Secondary Retention | √ | √ | × | ×
Pin Rotation Required | √ | √ | × | ×
Low Temperature (-40°C or colder) | × | × | × | ×
Corrosion Resistance | √ | √ | √ | √
Food Grade Application | √ | Stainless Steel Shackles | √ | √
Non Magnetic Equipment | √ | Stainless Steel Bolt Type Dee Shackle | √ | √
Multiple Sling Legs | × | √ | × | √
ROV Compatibility | × | Stainless Steel Bolt Type Anchor Shackle | × | ×

Standards
Name: Stainless Steel Shackle
MOQ: 1 Piece
Package: Carton + Steel Pallet

Manufacturing Standards
Manufactured from AISI 316 stainless steel with controlled machining, dimensional inspection and surface polishing. Product is designed to recognized rigging component requirements and can be supplied with material traceability documentation on request.

Testing Standards

• Material verification
• Dimensional inspection
• Surface finish inspection
• Proof load testing
• Working Load Limit verification
• Identification marking inspection

Test certificates and traceable 3.1 material certificates are available according to product requirements.

Applications

• Marine equipment connection
• Offshore rigging systems
• Stainless steel chain assemblies
• Wire rope and sling connections
• Corrosion‑resistant lifting applications

Safety requirements

• Apply load in line with the shackle body
• Avoid side loading unless WLL reduction is considered
• Screw pin shackles are recommended for temporary connections
• Bolt type shackles are recommended for permanent or long‑term installations

Maintenance

• Inspect pin condition and for pin damage before use
• Check thread condition
• Inspect body for deformation
• Inspect for corrosion or surface damage
• Verify identification markings
• Replace the shackle if cracks, deformation, excessive wear or damage affecting the WLL are found

Characteristics / Technical specifications

• Material: AISI 316 stainless steel
• Design factor: 6:1
• Available designs: Dee (D) shackle and Bow (anchor) shackle
• Pin options: safety bolt pin (bolt type) and screw/countersunk pin (screw pin)
• Working Load Limit (WLL) ranges: 0.4 t to 10 t depending on type and size
• Main applications: marine, offshore, lifting, rigging, corrosion‑resistant environments, food‑grade applications
• Surface finish: highly polished
• Supply: material traceability documentation and 3.1 material certificates available on request
• Packaging: carton plus steel pallet
• MOQ: 1 Piece
