Crawler bulldozer FM132mining and quarryingoutdoorfor construction
Add to favorites
Compare this product
Characteristics
- Locomotion
- crawler
- Applications
- for construction, mining and quarrying, outdoor, for mining applications, for quarries
- Operating weight
34,300 kg
(75,618.6 lb)- Motor power
257 kW
(349.42 hp)
Description
Product

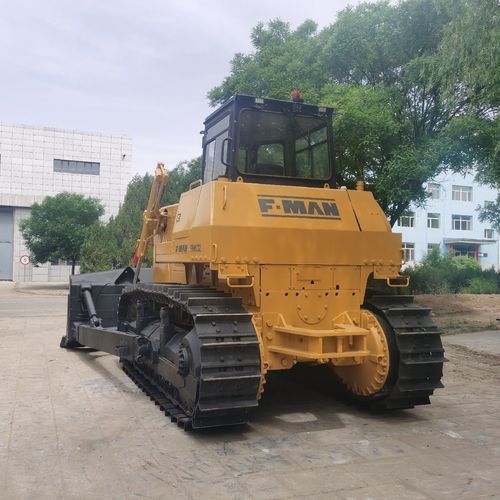

FM132 crawler bulldozer — 320 HP class, driven by NTA855-C360S10 engine (rated 257 kW / 2000 rpm). Operating weight approx. 34,300 kg and dozing capacity 7.8 m³; suitable for heavy earthmoving and construction tasks.
Specifications (comparison table)
Key technical specifications
Performance & hydraulics
Cabin & features
Applications
FM132 crawler bulldozer — 320 HP class, driven by NTA855-C360S10 engine (rated 257 kW / 2000 rpm). Operating weight approx. 34,300 kg and dozing capacity 7.8 m³; suitable for heavy earthmoving and construction tasks.
Specifications (comparison table)
- Model: FM116 | FM123 | FM132
- Type: 160HP Standard Hydraulic Crawler Type | 230HP Standard Hydraulic Crawler Type | 320HP Standard Hydraulic Crawler Type
- Engine: WP10G178E25 | NT855-C280S10 | NTA855-C360S10
- Displacement (L): 9.7 | 14 | 14
- Rated power (kW/rpm): 131/1850 | 179/2000 | 257/2000
- Max. torque (N.m/rpm): 830/1200 | 1050/1400 | 1509/1400
- Operating weight (kg): 18700 | 24950 | 34300
- Dimension (mm) (no ripper): 5040×3388×3100 | 5495×3728×3380 | 6880×4138×3610
- Min ground clearance (mm): 400 | 405 | 500
- Ground pressure (kPa): 65 | 76 | 104
Key technical specifications
- Ground contact area: 2430 | 2840 | 3150 mm
- Dozing capacity: 4.5 | 7.8 | 7.8 m³
- Blade length: 3418 | 3725 | 4130 mm
- Blade height: 1170 | 1390 | 1590 mm
- Max tilt adjustment: 860 | 735 | 1000 mm
- Track shoe width: 510 | 560 | 560 mm
- Grouser height: 60 | 72 | 80 mm
- Track gauge: 203 | 216 | 228.6 mm
- Quantity of carrier rollers: 4 | 4 | 4
- Quantity of track rollers: 12 | 14 | 14
- Fuel tank: 320 | 490 | 600 L
- Engine oil: 30 L (all models)
Performance & hydraulics
- Max pressure: 13.7 MPa
- Discharge: 250 | 260 | 355 L/min
- Minimum turning radius: 3100 | 3300 | 3940 mm
- Forward speed stages (FM132): 0-3.6 / 0-6.6 / 0-11.5 km/h
- Rear speed stages (FM132): 0-4.4 / 0-7.8 / 0-13.5 km/h
Cabin & features
- Air conditioner
Applications
- Designed for heavy earthmoving, road construction, quarry and mining site preparation, and large-scale site grading
