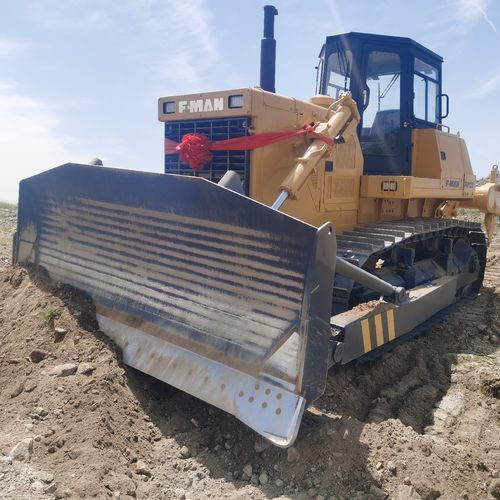

Crawler bulldozer FM123

for construction

Product Name
FM123 Crawler Bulldozer - FMAN 230hp dozer

Category

• Crawler Bulldozer

Overview
230HP standard hydraulic crawler-type bulldozer manufactured by FMAN. Features an NT855-C280S10 engine; air conditioner available as an option.

Specifications (FM116 | FM123 | FM132)
Model | FM116 | FM123 | FM132
Type | 160HP Standard Hydraulic Crawler Type | 230HP Standard Hydraulic Crawler Type | 320HP Standard Hydraulic Crawler Type
Engine | WP10G178E25 | NT855-C280S10 | NTA855-C360S10
Displacement (L) | 9.7 | 14 | 14
Rated power (kw/rpm) | 131/1850 | 179/2000 | 257/2000
Max. torque (N.m/rpm) | 830/1200 | 1050/1400 | 1509/1400
Operating weight (kg) | 18700 | 24950 | 34300
Dimension (no ripper) (mm) | 5040×3388×3100 | 5495×3728×3380 | 6880×4138×3610
Min ground clearance (mm) | 400 | 405 | 500
Ground pressure (kPa) | 65 | 76 | 104
Ground contact area (mm) | 2430 | 2840 | 3150
Dozing capacity (m³) | 4.5 | 7.8 | 7.8
Blade length (mm) | 3418 | 3725 | 4130
Blade height (mm) | 1170 | 1390 | 1590
Max tilt adjustment (mm) | 860 | 735 | 1000
Track shoe width (mm) | 510 | 560 | 560
Grouser height (mm) | 60 | 72 | 80
Track gauge (mm) | 203 | 216 | 228.6
Quantity of Carrier rollers | 4 | 4 | 4
Quantity of Track rollers | 12 | 14 | 14
Max pressure (MPa) | 13.7 | 13.7 | 13.7
Discharge (L/min) | 250 | 260 | 355
Minimum turning radius (mm) | 3100 | 3300 | 3940
Forward Speed (Km/h) | 0-3.1; 0-5.48; 0-9.08 | 0-3.8; 0-6.8; 0-11.3 | 0-3.6; 0-6.6; 0-11.5
Rear Speed (Km/h) | 0-4; 0-7.12; 0-11.8 | 0-4.9; 0-8.2; 0-13.6 | 0-4.4; 0-7.8; 0-13.5
Fuel tank (L) | 320 | 490 | 600
Engine oil (L) | 30 | 30 | 30

Features

• Air Conditioner

Technical specifications

• Model: FM123
• Type: 230HP Standard Hydraulic Crawler Type
• Engine: NT855-C280S10
• Displacement: 14 L
• Rated power: 179/2000 (kw/rpm)
• Max. torque: 1050/1400 (N.m/rpm)
• Operating weight: 24950 kg
• Dimension (no ripper): 5495×3728×3380 mm
• Min ground clearance: 405 mm
• Ground pressure: 76 kPa
• Ground contact area: 2840
• Dozing capacity: 7.8 m³
• Blade length: 3725 mm
• Blade height: 1390 mm
• Max tilt adjustment: 735 mm
• Track shoe width: 560 mm
• Grouser height: 72 mm
• Track gauge: 216 mm
• Quantity of carrier rollers: 4
• Quantity of track rollers: 14
• Max pressure: 13.7 MPa
• Discharge: 260 L/min
• Minimum turning radius: 3300 mm
• Forward speeds (Km/h): 0-3.8; 0-6.8; 0-11.3
• Rear speeds (Km/h): 0-4.9; 0-8.2; 0-13.6
• Fuel tank: 490 L
• Engine oil: 30 L
