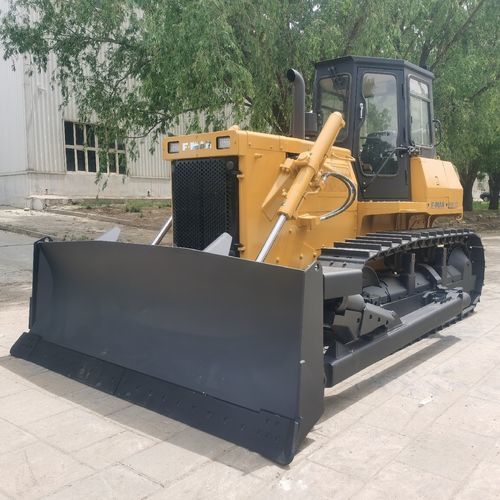

Crawler bulldozer FM113

mining and quarryingoutdoorfor construction

Product overview
FM113 is a crawler bulldozer manufactured by FMAN, rated at 130 hp and intended for earthmoving and site preparation tasks where a track-type dozer is required.

Key specifications

• Brand: FMAN
• Model: FM113
• Rated power: 130 hp
• Product type: Crawler bulldozer (track-type)
• Noted equipment: Air Conditioner (available)

Specifications (excerpt for related models)

• Model: FM116 — Type: 160HP Standard Hydraulic Crawler — Engine: WP10G178E25 — Displacement: 9.7 L — Rated power: 131 kW/1850 rpm — Operating weight: 18,700 kg — Blade length: 3418 mm — Track shoe width: 510 mm — Fuel tank: 320 L
• Model: FM123 — Type: 230HP Standard Hydraulic Crawler — Engine: NT855-C280S10 — Displacement: 14 L — Rated power: 179 kW/2000 rpm — Operating weight: 24,950 kg — Blade length: 3725 mm — Track shoe width: 560 mm — Fuel tank: 490 L
• Model: FM132 — Type: 320HP Standard Hydraulic Crawler — Engine: NTA855-C360S10 — Displacement: 14 L — Rated power: 257 kW/2000 rpm — Operating weight: 34,300 kg — Blade length: 4130 mm — Track shoe width: 560 mm — Fuel tank: 600 L

Engine & performance

• Engines listed for related models: WP10G178E25, NT855-C280S10, NTA855-C360S10
• Hydraulic system: maximum working pressure up to 13.7 MPa; discharge ranges from 250 to 355 L/min depending on model
• Transmission and speeds: multiple forward/reverse ranges for precise maneuvering on site

Dimensions & weight

• Reference dimensions (no ripper) by model: FM116 5040×3388×3100 mm; FM123 5495×3728×3380 mm; FM132 6880×4138×3610 mm
• Ground clearance, contact area and ground pressure vary by model to suit different ground conditions

Cabin & operator features

• Operator cab includes available air conditioning; ergonomic controls and visibility designed for long operations
• Service points accessible for maintenance; engine oil capacity typically 30 L (check model sheet)

Options & accessories

• Available options: air conditioner (listed), other attachments and configurations on request

Recommended related models

• FM116 Crawler Bulldozer
• FM113 Crawler Bulldozer
• FM132 Crawler Bulldozer

Applications & procurement

• Typical applications: construction earthworks, quarry and mining support, road building and large site grading
• Contact supplier for detailed datasheets, configuration options and ordering information
