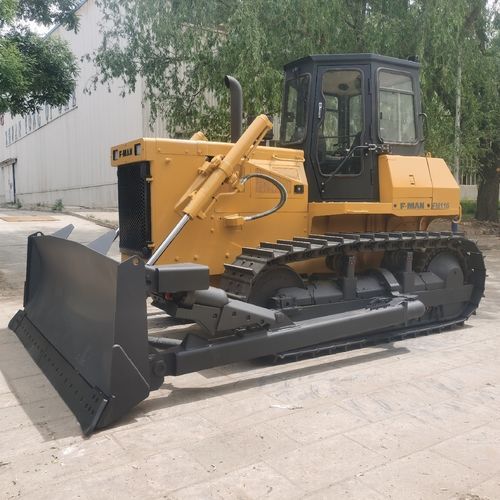

Crawler bulldozer FM116

for construction

Overview
FM116 Crawler Bulldozer is a 160 HP standard hydraulic crawler designed for earthmoving, grading and bulk material handling. Key performance figures include 131 kW rated power at 1850 rpm, 18,700 kg operating weight and a dozing capacity of 4.5 m³.

Comparative models (FM116 / FM123 / FM132)

• FM116: 160 HP, Operating weight 18,700 kg, Dozing capacity 4.5 m³
• FM123: 230 HP, Operating weight 24,950 kg, Dozing capacity 7.8 m³
• FM132: 320 HP, Operating weight 34,300 kg, Dozing capacity 7.8 m³

Features

• Air Conditioner

Technical specifications

• Model: FM116
• Type: 160HP Standard Hydraulic Crawler Type
• Engine: WP10G178E25
• Displacement: 9.7 L
• Rated power: 131 kW @ 1850 rpm
• Max. torque: 830 N·m @ 1200 rpm
• Operating weight: 18,700 kg
• Dimension (no ripper): 5040×3388×3100 mm
• Min ground clearance: 400 mm
• Ground pressure: 65 kPa
• Ground contact area: 2430 mm²
• Dozing capacity: 4.5 m³
• Blade length: 3418 mm
• Blade height: 1170 mm
• Max tilt adjustment: 860 mm
• Track shoe width: 510 mm
• Grouser height: 60 mm
• Track gauge: 203 mm
• Quantity of carrier rollers: 4
• Quantity of track rollers: 12
• Max pressure: 13.7 MPa
• Discharge: 250 L/min
• Minimum turning radius: 3100 mm
• Forward speed (gear stages): 0-3.1 / 0-5.48 / 0-9.08 km/h
• Rear speed (gear stages): 0-4 / 0-7.12 / 0-11.8 km/h
• Fuel tank capacity: 320 L
• Engine oil capacity: 30 L
