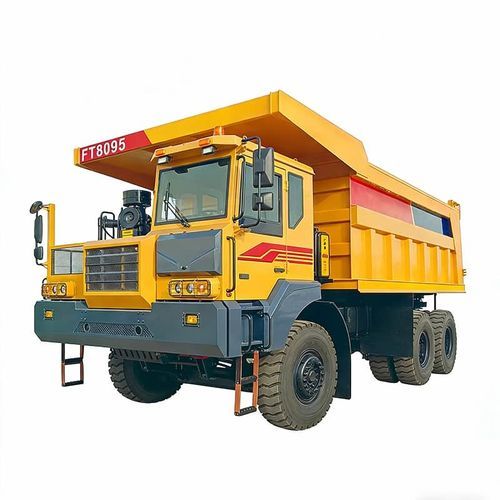

Rigid dump truck FT8095

combustion enginediesel enginefor harsh conditions

Overview
This mining/off-road dump truck FT8095 is built for heavy-duty mining and construction operations. It features a reversible wide-body off‑set cab (left‑hand drive), Weichai 420 hp engine variants (WP12G420 E211 / WD12G420E211) and FAST 7DS220 transmission, making it suitable for harsh, high‑load environments.

Key specifications (table)

• Model: FT8095 — Brand: FMAN
• Driving cab: Reversible wide-body offset cab (left-hand drive)
• Engine / Power: Weichai WP12G420 E211 — 420 hp (variants noted)
• Transmission: FAST 7DS220
• Steering: EATON full hydraulic power steering
• Front/rear axles: PX20T cast steel front axle / PX35T cast dual-reduction middle & rear axle (also referenced as FMAN 20 t front, 35 t middle/rear)
• Frame (table): Welded semi-rigid cube frame 450*140 mm
• Body inner dimensions (table): 5850 × 3200 × 1750 mm
• Tyres: 14.00R25 mining tyres (steel radial)
• Brakes: SORL system, drum brakes on front/mid/rear axles
• Max speed: 42 km/h; Min ground clearance: 380 mm; Min turning radius: ≤12 m; Max gradeability: 30% (table)

Additional technical notes (text)

• Frame (text): 480*140 welded type (variant)
• Body (text): cargo box 5600 × 2850 × 1550 mm, material Q345 (variant vs table)
• Curb weight: table 30000 kg — text cites 60000 kg
• Rated load: table 60000 kg — text cites 95000 kg
• Max gradeability (text): 40% (variant)

Features / Technical specifications

• Body material/structure: Q355 / Q345 plates; bottom 16 mm, side 12 mm; front hoisting with Hyva191 cylinder
• Suspension: Fully welded equalizing suspension with reinforced removable equalizing shaft
• Leaf springs: Front oil-gas spring; Rear 120 × 32 × 11
• Other equipment: Oil-bath filter, exhaust/engine brake, base-plate heater, stone remover, chassis protection, relay waterproof protection, reinforced rearview mirrors, LED sidelights & taillights, backup camera, centralized lubrication system
• Overall dimensions (table): 9100 × 3450 × 4080 mm; Axle base: 3800 + 1560 mm; Wheel span F/R: 2792 / 2526 mm; Fuel tank: 600 L steel

Notes
Source data includes multiple numeric/model variants for items such as engine designation, frame size, curb weight and rated load; both table and text values are listed above. Contact supplier to confirm the exact configuration for ordering.
