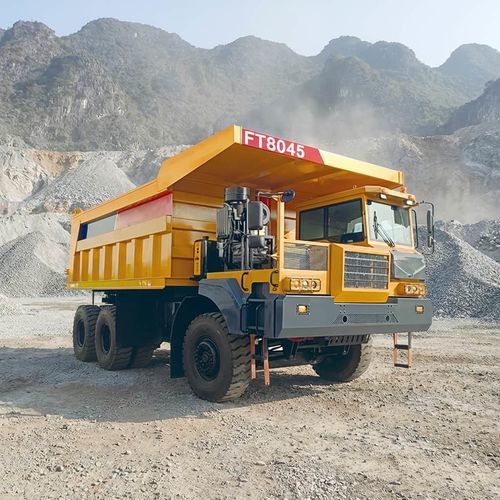

Rigid dump truck FT8045

dieseldiesel enginemining and quarrying

Product overview
The FMAN FT8045 is an off‑road wide‑body dump truck engineered for heavy mining and quarry operations. It features a flip‑over offset wide cab (LHD), Weichai WD12G420E211 420 hp engine paired with Fast 7DS220 transmission, FMAN cast steel axles and 14.00‑25PR mining tires. The welded semi‑rigid box frame and Q345 cargo box (bottom 16 mm, sides 12 mm) are specified for abrasive environments. Rated payload 43,000 kg, curb weight 22,000 kg, rated total mass 65,000 kg.

Key specifications

• Cab: Flip‑over wide‑body offset cab (left‑hand drive)
• Engine: Weichai WD12G420E211 — 420 hp
• Transmission: Fast 7DS220
• Steering gear: Shashi Jiulong
• Axles: FMAN13T front cast steel; FMAN25T middle/rear cast steel with dual‑stage reduction
• Frame: Welded semi‑rigid box frame 480 × 140 mm
• Cargo box (internal): 5600 × 2850 × 1550 mm — Q345 (bottom 16 mm; sides 12 mm), front lift with domestic hydraulic cylinder
• Tires: 14.00‑25PR mining tires
• Braking system: SORL

Key features

• Powertrain tuned for steep slopes and uneven terrain: Weichai 420 hp + Fast 7DS220
• FMAN cast steel axles with dual‑stage reduction on middle/rear axles for high loads
• Reinforced Q345 cargo box designed for abrasive materials (16 mm bottom, 12 mm sides)
• Integrated welded balance suspension with reinforced detachable balance shaft for off‑road stability
• Mining‑spec tires and SORL braking for intensive operation

Applications
Suitable for open‑pit mines, quarries and heavy off‑road haulage requiring high payload and wear resistance. Design simplifies maintenance access and reduces downtime in continuous operations.

Technical data

• Model: FT8045
• Brand: FMAN
• Curb weight: 22,000 kg
• Rated payload: 43,000 kg
• Rated total mass: 65,000 kg
• Overall dimensions: 8680 × 3050 × 3800 mm
• Wheelbase: 3650 + 1560 mm
• Track width (front/rear): 2368 mm / 2252 mm
• Minimum ground clearance: 365 mm
• Minimum turning radius: ≤10 m
• Top speed: 42 km/h
• Maximum climbing ability: 40%
• Cargo box internal dimensions: 5600 × 2850 × 1550 mm
• Tires: 14.00‑25PR
