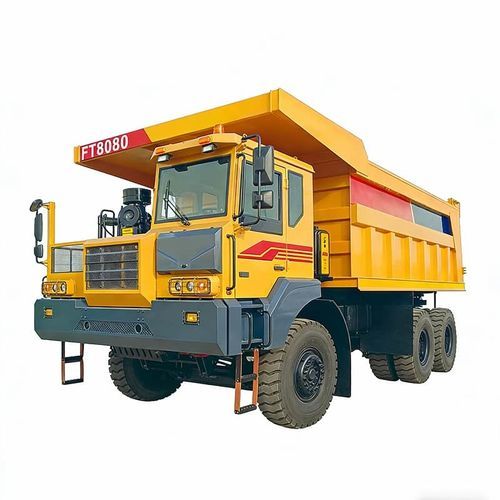

Rigid dump truck FT8080

diesel enginedieselfor quarries

Product overview
The FT8080 is a large off‑road mining dump truck engineered for heavy-duty operations in quarries and mines. It features a reversible wide‑body offset cab in left‑hand drive, a Weichai WP12G420 E211 420 hp engine and FAST 7DS220 transmission. The vehicle is specified for harsh mining conditions with cast steel axles, reinforced welded cube‑type frame and a reinforced mining cargo body.

Key specifications

• Model: FT8080
• Brand: FMAN
• Cab: Reversible wide‑body offset cab (left‑hand drive)
• Engine: Weichai WP12G420 E211 — 420 hp
• Transmission: FAST 7DS220
• Steering: EATON full hydraulic power steering
• Front/rear axles: PX20T front (cast) / PX35T dual‑reduction middle/rear (cast)
• Frame: Welded semi‑rigid cube frame 450×140 mm (alternative 480×140)
• Body: Q355 bottom 16 mm / side 12 mm (alternative Q345); Hyva191 front hoist
• Tyres: 14.00R25 mining tyre
• Suspension: Fully welded equalizing suspension with reinforced removable equalizer shaft
• Brakes: SORL drum brakes on front/middle/rear axles
• Fuel tank: 600 L steel

Performance & Dimensions
Curb weight: 30000 kg (table)
Rated load: 60000 kg (table) — alternative 80000 kg noted
Rated total weight: 90000 kg
Overall dimensions: 9100×3450×4080 mm
Inner body dimensions: 5850×3200×1750 mm (alternative 5600×2850×1550 mm)
Frame section: 450×140 mm (alternative 480×140 mm)
Max speed: 42 km/h
Min ground clearance: 380 mm
Min turning radius: ≤12 m
Max gradeability: 30% (table) — alternative 40% noted
Wheelbase: 3800+1560 mm
Front/rear wheel span: Front 2792 mm / Rear 2526 mm

Options & equipment

• Oil‑bath filter
• Exhaust (engine) brake
• Base‑plate heater
• Stone remover
• Chassis protection / underbody guards
• Waterproof relay protection
• Reinforced rear‑view mirrors
• LED side lights and taillights
• Backup camera
• Centralized lubrication system

Maintenance & safety

• Designed for serviceability; centralized lubrication option reduces maintenance time
• Engine and braking arrangements suited to mining service (oil‑bath filter, exhaust brake)
• Chassis protection and reinforced mirrors increase durability and site safety
• LED lighting and backup camera improve operational visibility

Notes
Source documentation contains inconsistent values for body and frame dimensions, rated load and maximum gradeability. All observed variants are listed above. Confirm final specifications, detailed drawings and material choice (Q355 vs Q345) with the supplier before ordering.
