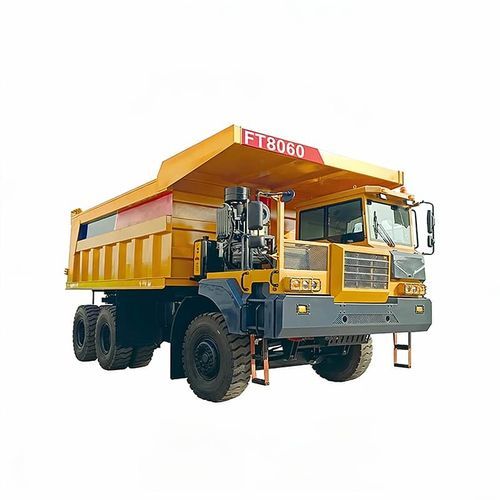

Rigid dump truck FT8060

dieseldiesel enginefor harsh conditions

Overview
The FMAN FT8060 is an off‑road wide‑body mining dump truck designed for quarry and mine haul applications. It features a reversible offset left‑hand cab, a Q345/Q355 steel mining body with Hyva191 front hoisting cylinder, and components specified for severe conditions. Powertrain: Weichai WP12G420 (420 hp) / WD12G420E211 with FAST 7DS220 transmission. Steering: EATON full hydraulic power steering. Axles: FMAN cast steel PX20T front and PX35T dual‑reduction mid/rear.

Key specifications

• Model: FT8060
• Brand: FMAN
• Cab: Reversible offset wide‑body cab (Left‑hand drive)
• Engine: Weichai WP12G420 (420 hp) — WD12G420E211
• Transmission: FAST 7DS220
• Steering: EATON full hydraulic power steering
• Front/rear axles: PX20T front; PX35T dual‑reduction middle/rear
• Frame: Welded semi‑rigid cube frame (450×140 indicated; 480×140 referenced)
• Body inner dimensions (mm): 5850 × 3200 × 1750
• Body material/thickness: Q355 / Q345 — bottom 16 mm; sides 12 mm
• Hoisting: Hyva191 front hoisting (flip‑type)
• Tyres: 14.00R25 mining tyres
• Curb weight / Rated load / Gross vehicle weight (kg): 30,000 / 60,000 / 90,000
• Overall dimensions (mm): 9,100 × 3,450 × 4,080
• Max speed: 42 km/h · Min ground clearance: 380 mm · Min turning radius: ≤12 m · Max gradeability: 30%
• Fuel tank: 600 L steel

Features / Technical specifications

• Chassis: Welded semi‑rigid cube type frame
• Body: Reinforced mining body in Q355/Q345 with Hyva191 front tipping cylinder; bottom plate 16 mm, side plates 12 mm
• Suspension: Whole welded equalizing suspension with reinforced removable equalizing shaft
• Leaf springs: Front oil‑gas spring; Rear 120×32×11 steel leaf spring
• Brakes: SORL system with drum brakes on front/mid/rear axles; exhaust (engine) braking included
• Auxiliary equipment: Oil‑bath filter, base‑plate heater, stone remover, chassis protection, waterproof relay cover, reinforced rear‑view mirrors, LED side/taillights, backup camera, centralized lubrication system
• Axle base / Wheel span (mm): 3800 + 1560 / Front 2792; Rear 2526
• Payload suitability: Configured for harsh mining and quarry operations
