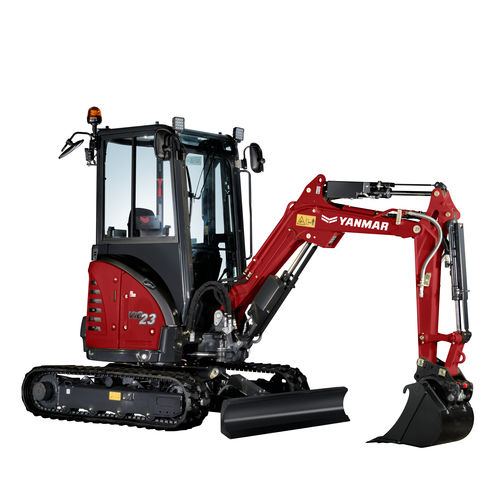

Mini excavator ViO23-6

mini excavator
mini excavator
mini excavator
mini excavator
mini excavator
mini excavator
mini excavator
mini excavator
mini excavator
mini excavator
mini excavator
Add to favorites
Compare this product


Engine type
Other characteristics
compact, zero tail swing
Operating weight

2,405 kg (5,302.1 lb)

Engine power

14.3 kW, 14.6 kW (19.44 hp)

Travel speed

Min.: 2.2 km/h (1.4 mph)

Max.: 4.2 km/h (2.6 mph)

Tank capacity

Min.: 0 l (0 gal)

Max.: 27.5 l (7.3 gal)

Sound level

80 dB, 93 dB

Digging depth

Min.: 2,270 mm (89.37 in)

Max.: 2,465 mm (97.047 in)


Designed for safe working in confined environments, the ViO23-6 is also easy to transport, thanks to its retractable undercarriage and low weight. Advanced hydraulics and indirect-injection engine give it plenty of precision power when it matters. Much is provided for the operator as well, from advanced safety features to comfort-based design in a surprisingly roomy cabin. Quick and easy maintenance can be boosted by SmartAssist Remote, which also offers a wealth of fleet management, productivity and security benefits. COMPACTNESS The ViO23-6 is a mini excavator which can work in the tightest spots, making it perfect for many urban environments. As a true zero-tail swing mini excavator, it allows a full rotation of the upper frame within the width of the crawlers for maximum safety. The rear blind spot has also been reduced to a minimum. All of this means that work along walls can be undertaken confidently and efficiently, and without having to worry about the safety of site workers. VARIABLE UNDERCARRIAGE The undercarriage retracts to just 1,380 mm, giving it easy access to tight areas. When extended, it measures 1,500 mm. Add in the excellent weight distribution and it’s no surprise that the resulting high stability results in impressive digging and loading capabilities. Plus with reduced clearance between the sliding parts, extending the undercarriage does not result in soil build-up. The hinged blade extensions are permanently fixed on the blade, there’s no possibility of losing them. They can also be quickly repositioned without tools.
