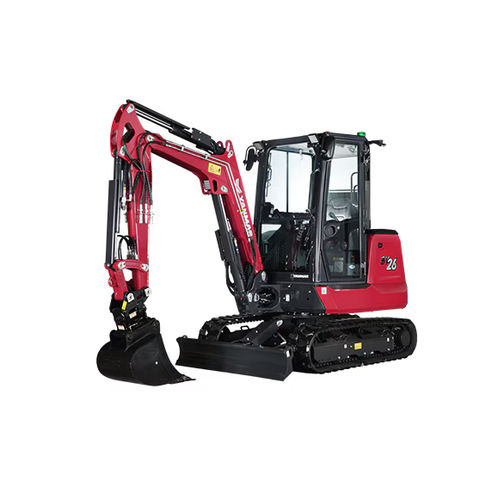

Mini-excavator SV26-7

trackeddieselconstruction

Overview
Powerful performance in a compact, manoeuvrable package. The YANMAR SV26-7 is a conventional-tail mini excavator designed for confined sites, urban foundations and landscaping projects. Intuitive controls, stable undercarriage and strong digging forces allow access to narrow spaces while maintaining operator control and safety.

Quick facts
Series: Conventional tail swing
Operating weight: 2,735 - 2,835 kg
Overall width: 1,550 mm
Max digging depth: 2,590 - 2,835 mm

Specifications (summary)
Transport weight: 2,555 kg (rubber tracks) / 2,655 kg (steel tracks)
Operating weight: 2,735 kg (rubber tracks) / 2,835 kg (steel tracks)

Engine
Type: Phase V 3TNV80F-ZXKBVA
Fuel: Diesel
Net power: 17.7 kW at 2,430 rpm
Gross power: 18.4 kW at 2,430 rpm
Displacement: 1.267 l
Max torque: 74.5 Nm at 1,900 rpm
Starter: 12 V - 1.4 kW
Battery: 12 V - 55 Ah
Alternator: 12 V - 55 A

Hydraulic system
Max pressure: 210 bar
Service pumps: 1 double variable-displacement piston pump / 1 gear pump / 1 gear pump
Max flow: 2 x 32.4 l/min / 21.6 l/min / 10.8 l/min
Hydraulic tank: 32 l

Performance
Travel speed: 2.5 / 4.4 km/h
Swing speed: 9.7 rpm
Stick digging force: 16.5 kN / 13.6 kN (long arm)
Bucket digging force: 21.4 kN
Drawbar pull: 23.5 kN / 12.1 kN
Fuel tank: 39 l

Dimensions
Overall length: 4,310 / 4,325 mm*
Overall height: 2,470 / 2,465 mm**
Overall width: 1,550 mm
Track length on ground: 1,570 mm
Track gauge: 1,250 mm
Track shoe width: 300 mm**
Dozer blade width: 1,500 mm
Dozer blade height: 300 mm
Max blade lift above ground: 330 mm
Max blade drop from ground: 355 mm
Minimum ground clearance: 325 mm

Digging reach and capacities
Max digging depth (blade up): 2,590 / 2,835 mm
Max digging depth (blade down): 2,775 / 3,025 mm
Max reach at ground level: 4,470 / 4,720 mm
Max reach: 4,595 / 4,835 mm
Max vertical wall: 1,195 / 1,400 mm
Max discharge height: 2,770 / 2,930 mm
Max cutting height: 4,190 / 4,345 mm
Left boom offset: 75°
Right boom offset: 60°
Arm length: 1,150 / 1,400 mm
Front swing radius: 1,985 / 2,025 mm
Front swing radius with offset: 1,105 / 1,115 mm
Rear swing radius: 1,165 mm
* with long arm
** with extended tracks

Operator design and comfort
Spacious cab with wide door, large glazed areas, rear camera and 4.3" display. Ergonomic layout with accessible controls. Mechanical and hydraulic quick couplers with flow preset and memory for up to 5 attachments via the display.

Maintenance and reliability
Robust chassis and steel covers, substantial counterweight, hydraulic hoses routed inside the boom and protected. Service points accessible through rear and side covers, under-seat panel and removable floor. Two-piece dozer cylinder for quick replacement.

Options and equipment

• Special paint
• Additional counterweight
• 2nd auxiliary circuit with proportional control
• 1/2 circuit
• Biodegradable hydraulic oil
• 2 front LED work lights
• Flat-face quick couplers AUX1 and AUX2
• Independent Powertilt supply line I
• 1 rear LED work light + beacon
• Auto idle stop

Comfort (options)

• Premium heated seat with mechanical suspension
• FM/DAB radio
• Grease lubrication system
• Smartphone holder

Safety (options)

• GPS tracking unit (TU700I)
• Anti-theft device (key/pad/LCD PIN)
• White-noise travel alarm
• Smart Assist Remote (SAR) telematics
• Front operator protection (FOPS) for cab

Compatible attachments

• Quick couplers
• Tilting couplers (powertilts)
• Buckets
• Breakers
• Tiltrotators

Technical specifications

• Model: SV26-7
• Brand: YANMAR
• Transport weight: 2,555 kg (rubber tracks) / 2,655 kg (steel tracks)
• Operating weight: 2,735 kg (rubber tracks) / 2,835 kg (steel tracks)
• Overall width: 1,550 mm
• Overall length: 4,310 / 4,325 mm (depending on configuration)
• Overall height: 2,470 / 2,465 mm (depending on configuration)
• Engine: Phase V 3TNV80F-ZXKBVA
• Fuel: Diesel
• Net power: 17.7 kW at 2,430 rpm
• Max torque: 74.5 Nm at 1,900 rpm
• Displacement: 1.267 l
• Max hydraulic flow: 2 x 32.4 l/min / 21.6 l/min / 10.8 l/min
• Max hydraulic pressure: 210 bar
• Hydraulic tank: 32 l
• Fuel tank: 39 l
• Travel speed: 2.5 / 4.4 km/h
• Swing speed: 9.7 rpm
• Bucket digging force: 21.4 kN
• Drawbar pull: 23.5 kN / 12.1 kN
• Front swing radius: 1,985 / 2,025 mm
• Rear swing radius: 1,165 mm
