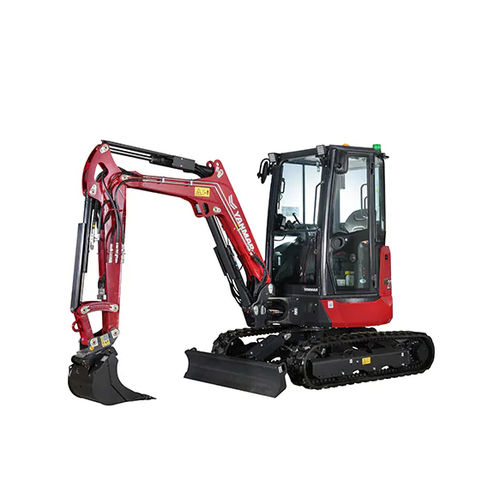

Mini-excavator ViO27-7

trackeddieselconstruction

Overview
The ViO27-7 is a zero-tail compact excavator designed for safe operation close to buildings, sidewalks and traffic. Suited for urban foundations, landscaping and confined worksites, it combines a narrow undercarriage, high visibility and VIPPS hydraulic control to deliver simultaneous, smooth movements while traveling.

Key attributes
True zero-tail swing configuration allows work alongside structures in congested areas. Overall width of 1,500 mm (cab and rubber tracks) and transport weight compliant with 3.5-tonne regulations support easy transport, manoeuvring and rental/fleet flexibility.

Features

• Small frame with full performance: compact dimensions and effective jobsite performance; boom swing range 75° left / 60° right.
• Zero-tail swing: minimises risk of contact or damage in tight urban environments.
• Transport-ready mobility: machine, quick coupler and two-bucket standard package fit within 3.5-tonne transport rules; four integrated tie-down points on the lower frame.
• Operator-focused design: spacious cabin with 425 mm entrance, large windows, 4.3 in LCD display and ergonomic controls.
• Simplified maintenance: wide-opening covers provide ground-level access to engine, filters, battery, radiator and hydraulic fluid; extended service intervals maximise uptime.

Options (Equipments)

• Special paint
• Additional counterweight
• 2nd auxiliary circuit with proportional control
• 1/2 circuit
• Bio oil
• 2 LED head lights on the front of the machine
• Flat face hydraulic quick connector AUX1 and AUX2
• Independent Powertilt supply line
• 1 LED light + beacon to the rear of the machine
• Auto stop

Comfort

• Premium mechanical suspension seat, heated (opt.)
• Radio FM/DAB
• Centralised greasing
• Smartphone holder

Safety

• GPS track unit (TU700I) / Anti-theft device (Key/Keypad/LCD pincode)
• Travel alarm white noise
• Smart Assist Remote (SAR) Telematics
• FOPS
• Front operator protection for cabin

Attachments (examples)

• Quick couplers
• Powertilt couplers
• Buckets
• Breakers

Quick specification summary (table)
Type: Zero Tail
Operating weight: 2 745 - 2 845 kg (rubber / steel tracks variations)
Width: 1 500 - 1 550 mm
Max. digging depth: 2 590 - 2 835 mm

Technical specifications

• Model: ViO27-7
• Type: Zero Tail
• Transport weight: 2 565 kg (rubber tracks) / 2 665 kg (steel tracks)
• Operating weight: 2 745 kg (rubber tracks) / 2 845 kg (steel tracks)
• Overall length (A): 4 165 / 4 180 mm*
• Overall height (B): 4 525 / 4 540 mm*
• Overall width (C): 1 500 / 1 550 mm**
• Length of track on ground (D): 1 570 mm
• Undercarriage length (E): 2 020 mm
• Lane (F): 1 250 mm
• Track width (G): 250 / 300 mm**
• Overall blade width (H): 1 500 mm
• Overall blade height (I): 300 mm
• Blade distance (J): 1 380 mm
• Max. blade height above the ground (K): 330 mm
• Max. lowering blade depth (L): 355 mm
• Minimum ground clearance (M): 325 mm
• Max. digging depth - Blade lifted: 2 590 / 2 835* mm
• Max. digging depth - Blade lowered: 2 775 / 3 025* mm
• Max. digging reach on ground: 4 470 / 4 720* mm
• Max. digging reach: 4 595 / 4 835* mm
• Max vertical wall: 1 195 / 1 400* mm
• Max. dumping height: 2 770 / 2 930* mm
• Max. cutting height: 4 190 / 4 345* mm
• Boom swinging base to left: 75°
• Boom swinging base to right: 60°
• Arm length: 1 150 / 1 400* mm
• Minimum front swing radius: 1 985 / 2 025* mm
• Minimum front swing radius with boom swing: 1 105 / 1 115* mm
• Rear turning radius: 750 mm
• Engine type: Stage V 3TNV80F-ZXKBVA
• Fuel: Diesel
• Net power: 17.7 kW at 2400 rpm
• Gross power: 18.4 kW at 2400 rpm
• Displacement: 1.267 l
• Max Torque: 74.5 Nm (1900 rpm)
• Starter: 12 V - 1.4 kW
• Battery: 12 V - 55 Ah
• Alternator: 12 V - 55 A
• Hydraulic maximum pressure: 210 bar
• Working pump: 1 gear pump
• Max flow: 2 x 32,4 l/min
• Hydraulic tank capacity: 32 l
• Travel speed: 2.5 / 4.4 km/h
• Rotation speed: 9.7 rpm
• Digging force (arm): 16.5 kN / 13.6 kN with long arm
• Digging force (bucket): 21.4 kN
• Traction force: 23.5 kN / 12.1 kN
• Noise level (2000/14/CE & 2005/88/CE): NA
• Fuel tank capacity: 39 l
• Notes: short arm / long arm variations and extended tracks indicated where shown by * and **
