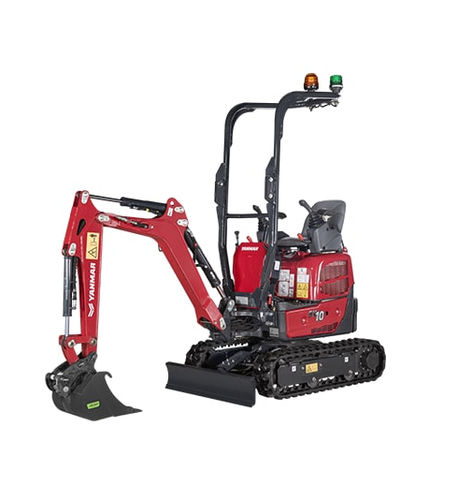

Mini-excavator SV10

trackedTier 4 - finaldiesel

Overview
The compact mini-excavator SV10 delivers strong performance in confined spaces. Easy to transport, quick to deploy and designed for high availability, it helps professionals increase efficiency while reducing operating costs.

Summary
Series: Conventional Radius
Operating weight: 1,180 kg
Width: 740 - 990 mm
Dig depth: 1,800 - 1,955 mm

Specifications (detailed)
Weight - Transport weight: 1,055 kg (rubber tracks)
Weight - Operating weight: 1,180 kg (rubber tracks)

Engine
Type: Stage V 3TNV70-WBVB1
Fuel: Diesel
Net power: 9.2 kW (at 2,000 rpm)
Gross power: 9.3 kW (at 2,000 rpm)
Displacement: 0.854 l
Max torque: 51.8 N.m / 1,500 rpm
Starter: 12 V - 1.1 kW
Battery: 12 V - 36 Ah
Alternator: 12 V - 8.5 A

Hydraulic system
Maximum pressure: 190 bars
Service pump: 1 variable-displacement double piston pump / 1 gear pump
Max flow: 2 x 11.14 l/min / 6.79 l/min
Hydraulic tank: 7.5 l

Performance
Travel speed: 1.8 - 3.6 km/h
Swing speed: 9.1 rpm
Dipper crowd force: 5.2 kN
Bucket digging force: 7.6 kN
Drawbar pull: 9.39 kN
Noise level (2000/14/EC & 2005/88/EC): LwA: 92 dBA / Lpag: 76 dBA
Fuel tank: 10.84 l

Main dimensions
Overall length (A): 2,810 mm
Overall height (B): 2,300 mm
Overall width (C): 740 / 990 mm
Track length on ground (D): 970 mm
Track length (E): 1,290 mm
Track gauge (F): 560 / 810 mm
Track width (G): 180 mm
Blade overall width (H): 740 / 990 mm
Blade overall height (I): 205 mm
Distance to blade (J): 840 mm
Max blade lifting height above ground (K): 185 mm
Max blade lowering depth from ground (L): 230 mm
Minimum ground clearance (M): 125 mm

Digging depth and reach
Max digging depth – blade up (N): 1,800 mm
Max digging depth – blade down (O): 1,955 mm
Max reach at ground level (P): 3,130 mm
Max reach (Q): 3,180 mm
Max vertical wall (R): 1,010 mm
Max dumping height (S): 2,010 mm
Max digging height (T): 2,830 mm
Left swing (U): 60°
Right swing (V): 60°
Arm length (W): 905 mm
Front swing radius (X): 1,265 mm
Front swing radius with boom swing (Y): 935 mm
Rear swing radius (Z): 590 mm
Note: ROPS bar folded / ROPS bar raised

Features & Highlights

• Designed for confined spaces: 740 mm machine width, fits through standard European doors, 540 mm rear swing.
• Variable-width undercarriage: 740 mm → 990 mm.
• Lightweight and easy to transport: transport weight 1,055 kg, can be carried by a conventional light vehicle.
• Exceptional digging depth for the 1-ton class: up to 1,800 mm (blade up) or 1,955 mm (blade down).
• 3-cylinder Stage V engine delivering top-class power for the 1-ton category.
• Operator-friendly interface and ergonomic layout: intuitive controls, adjustable joystick console spacing.
• Versatility: compatible with many attachments (augers, grapples, breakers, thumbs, buckets, quick couplers, powertilt, tiltrotators).

Technical specifications

• Model: SV10
• Brand: YANMAR
• Operating weight: 1,180 kg
• Transport weight: 1,055 kg (rubber tracks)
• Minimum / maximum width: 740 / 990 mm
• Overall length: 2,810 mm
• Overall height: 2,300 mm
• Digging depth: 1,800 - 1,955 mm
• Digging reach: 3,130 - 3,180 mm
• Engine: Stage V 3TNV70-WBVB1, Diesel, 9.2 kW net
• Displacement: 0.854 l
• Max torque: 51.8 N.m / 1,500 rpm
• Fuel tank: 10.84 l
• Hydraulic system: max pressure 190 bars, tank 7.5 l
• Travel speed: 1.8 - 3.6 km/h
• Bucket digging force: 7.6 kN
• Noise level: LwA 92 dBA / Lpag 76 dBA
