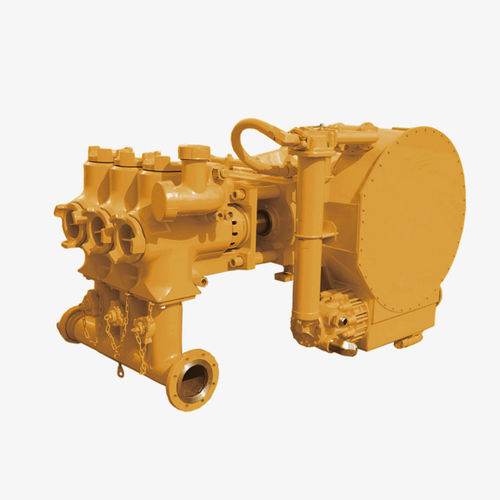

Acid pump JR500W for cementmanualreciprocating
Add to favorites
Compare this product
Characteristics
- Fluid
- acid, for cement
- Operation
- manual
- Technology
- reciprocating
- Mobility
- stationary
- Domain
- industrial
- Other characteristics
- lubricated, triplex, single-acting
- Flow
Max.: 266,880 l/min
(70,502.23733 us gal/min)Min.: 28 l/min
(7.39682 us gal/min)- Pressure
Max.: 20,000 psi
Min.: 7.5 psi
- Power
Max.: 500 ch
(500 hp)Min.: 364 ch
(364 hp)- Length
77 in
- Width
40.3 in
- Height
47 in
- Weight
5,500 lb
(2,494.76 kg)
Description
JR500W pump is a horizontal single-acting reciprocating triplex plunger pump. Power end is self-lubricated by oil pump built onto the worm gear. Driven by worm pair, the input shaft movement direction is in parallel with the plunger. The gearbox can be installed at either the left or right side of the pump which enables twin-pump layout on one unit, suitable for acidizing, cementing and fracturing applications.
