Plunger pump JR600S acidfor cementmanual
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- acid, for cement
- Operation
- manual
- Mobility
- stationary
- Domain
- industrial
- Other characteristics
- compact, triplex
- Flow
Max.: 211,110 l/min
(55,769.36197 us gal/min)Min.: 19 l/min
(5.01927 us gal/min)- Pressure
Max.: 20,000 psi
Min.: 14.5 psi
- Power
Max.: 600 ch
(600 hp)Min.: 253 ch
(253 hp)- Length
50 in
- Width
54.4 in
- Height
27 in
- Weight
4,674 lb
(2,120.09 kg)
Description

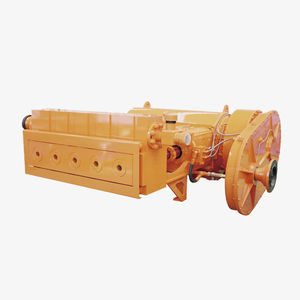

JR600S pump is a widely used triplex plunger pump available in the market. The unique offset design greatly reduces the load on the crosshead, slide and crankshaft bearing. The gearbox can be installed at either the left or right side of the pump with optional installation angles which can meet different drive requirements. The compact structure enables back-to-back mounting. The pump is suitable for acidizing and cementing applications.
